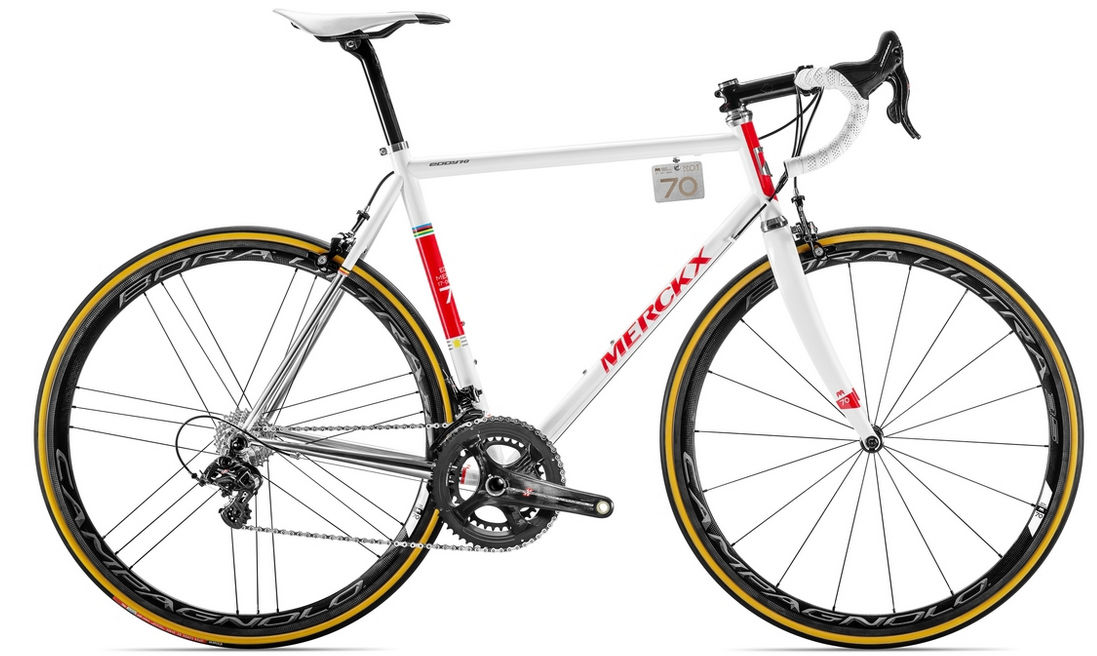

2015 Eddy Merckx Eddy70 geometry
Full frame geometry for the 2015 Eddy Merckx Eddy70, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 530 | 354 | 74.5 | 71.5 | 139 | 503 | 490 | 774 | 71 | 558 | 408 | 956 | 43 | 66 |
| XS | 544 | 370 | 74.5 | 71.5 | 143 | 522 | 520 | 797 | 71 | 577 | 408 | 976 | 43 | 66 |
| S | 558 | 376 | 74 | 72 | 152 | 537 | 540 | 817 | 69 | 584 | 409 | 983 | 43 | 63 |
| M | 574 | 385 | 73.5 | 72.5 | 161 | 555 | 560 | 836 | 69 | 593 | 409 | 992 | 43 | 60 |
| L | 588 | 391 | 73 | 73 | 171 | 571 | 580 | 854 | 69 | 599 | 409 | 998 | 43 | 57 |
| XL | 604 | 403 | 73 | 73 | 176 | 588 | 600 | 875 | 67 | 616 | 410 | 1016 | 43 | 57 |
| XXL | 629 | 418 | 72.5 | 73.5 | 189 | 616 | 630 | 904 | 67 | 633 | 410 | 1033 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
