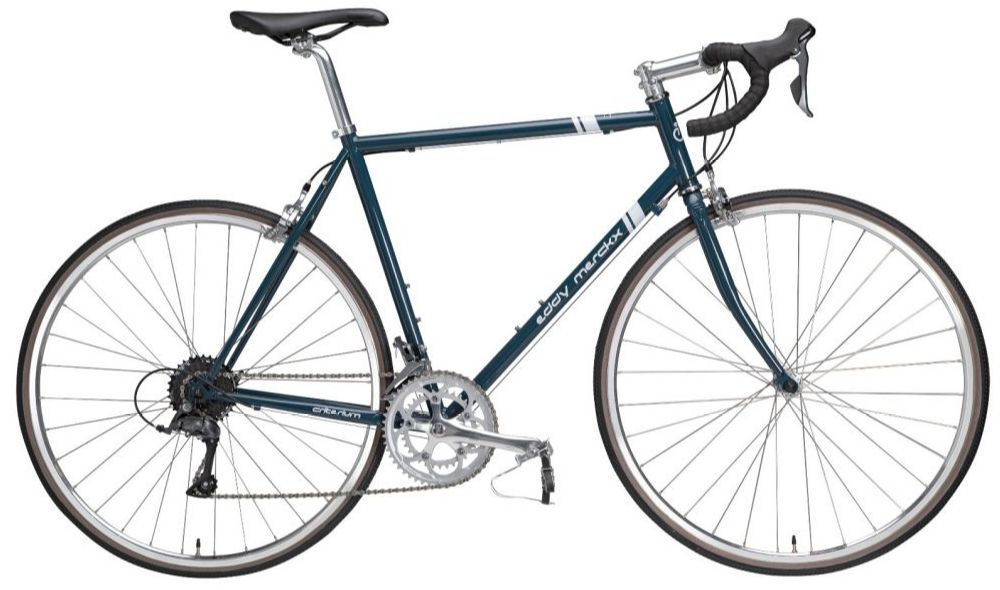

2019 Eddy Merckx Criterium geometry
Full frame geometry for the 2019 Eddy Merckx Criterium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 381 | 64.4 | 70 | 105 | 520 | 460 | 776 | 72 | 595 | 430 | 1015 |
| S | 539 | 385 | 74 | 70.5 | 125 | 540 | 510 | 797 | 72 | 602 | 430 | 1022 |
| M | 569 | 391 | 73 | 71 | 155 | 565 | 560 | 839 | 72 | 614 | 430 | 1034 |
| L | 599 | 396 | 72.5 | 71.5 | 185 | 585 | 610 | 881 | 72 | 624 | 430 | 1044 |
All measurements in millimetres unless marked (°) for angles.
