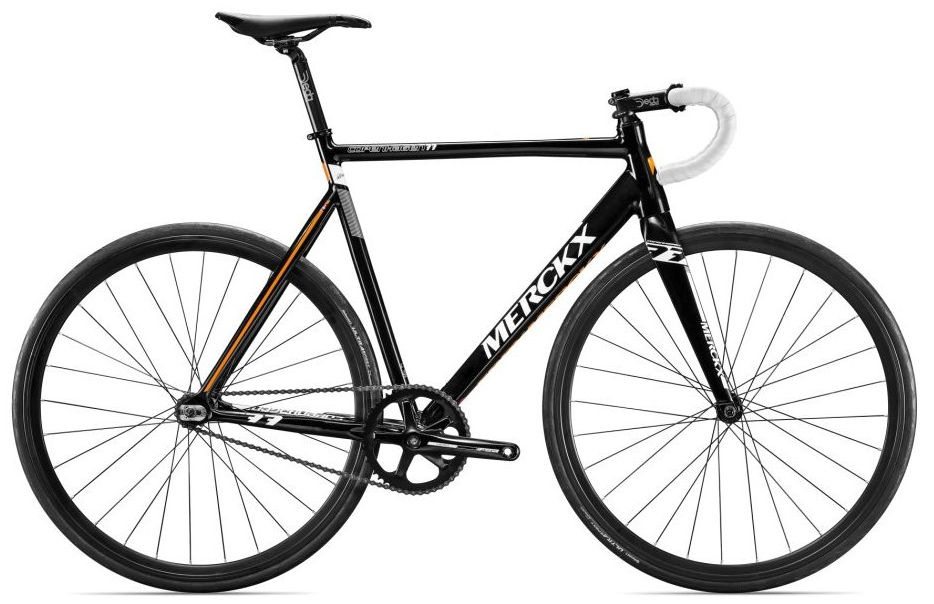

2016 Eddy Merckx Copenhagen 77 Alloy geometry
Full frame geometry for the 2016 Eddy Merckx Copenhagen 77 Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 506 | 369 | 74 | 73.5 | 112 | 515 | 525 | 794 | 58 | 542 | 390 | 924 | 35 | 62 |
| S | 524 | 379 | 74 | 73.5 | 132 | 529 | 544 | 814 | 57 | 556 | 390 | 939 | 35 | 62 |
| M | 541 | 386 | 74 | 74 | 148 | 541 | 562 | 832 | 57 | 564 | 390 | 947 | 35 | 59 |
| L | 561 | 394 | 73.5 | 74 | 168 | 560 | 580 | 852 | 57 | 578 | 390 | 961 | 35 | 59 |
| XL | 587 | 405 | 73.5 | 74 | 197 | 579 | 612 | 883 | 56 | 597 | 390 | 980 | 35 | 59 |
All measurements in millimetres unless marked (°) for angles.
