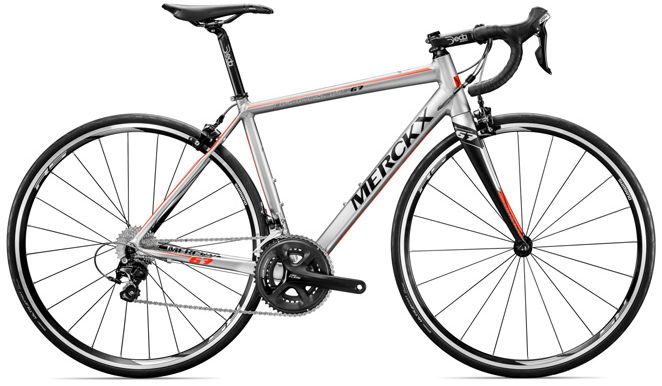

2016 Eddy Merckx Blockhaus 67 geometry
Full frame geometry for the 2016 Eddy Merckx Blockhaus 67, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 370 | 74 | 71.2 | 116 | 520 | 420 | 732 | 70 | 572 | 410 | 971 | 43 | 68 |
| S | 534 | 376 | 73.5 | 71.7 | 135 | 536 | 450 | 759 | 69 | 580 | 410 | 980 | 43 | 65 |
| M | 552 | 381 | 73.5 | 72.2 | 152 | 545 | 475 | 781 | 69 | 585 | 410 | 985 | 43 | 62 |
| L | 570 | 386 | 73.5 | 72.7 | 169 | 555 | 505 | 806 | 69 | 591 | 412 | 993 | 43 | 59 |
| XL | 588 | 390 | 73 | 73.2 | 187 | 570 | 535 | 832 | 68 | 596 | 412 | 999 | 43 | 56 |
All measurements in millimetres unless marked (°) for angles.
