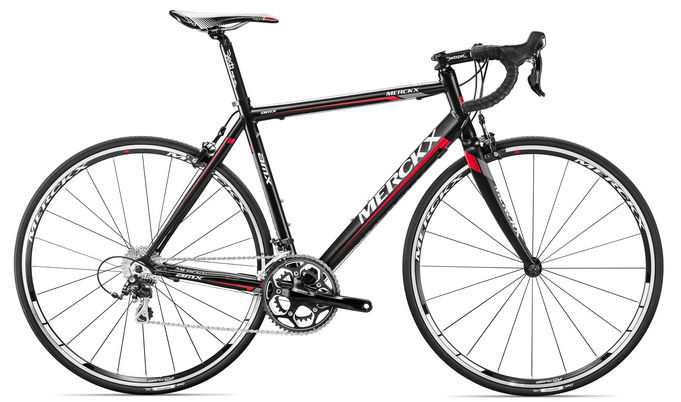

2014 Eddy Merckx AMX geometry
Full frame geometry for the 2014 Eddy Merckx AMX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 526 | 368 | 74.2 | 71.5 | 129 | 519 | 462 | 758 | 71 | 570 | 414 | 973 | 43 | 66 |
| 45 | 547 | 373 | 73.7 | 71.9 | 149 | 534 | 492 | 785 | 71 | 578 | 414 | 982 | 43 | 64 |
| 48 | 568 | 378 | 73.2 | 72.3 | 173 | 550 | 522 | 814 | 69 | 586 | 414 | 990 | 43 | 61 |
| 51 | 598 | 383 | 72.7 | 72.7 | 193 | 567 | 552 | 845 | 69 | 694 | 414 | 998 | 43 | 59 |
| 54 | 610 | 388 | 72.7 | 73.1 | 216 | 583 | 582 | 869 | 67 | 602 | 414 | 1007 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
