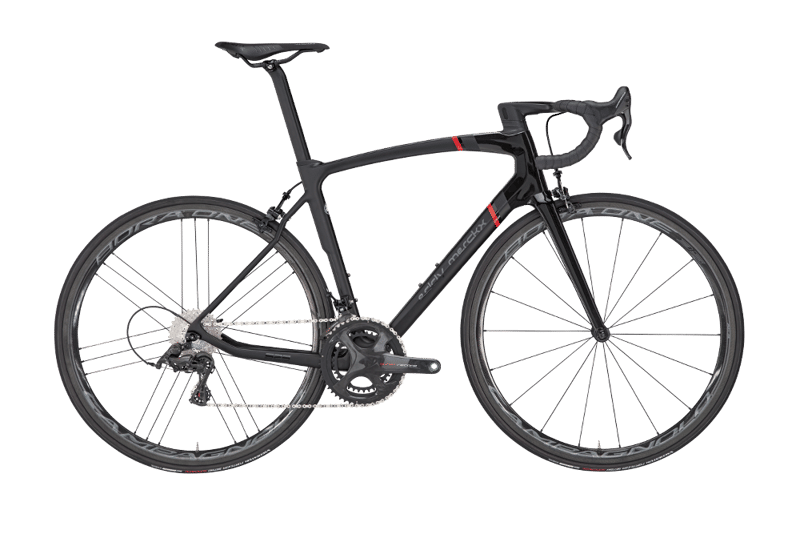

2022 Eddy Merckx 525 Rim geometry
Full frame geometry for the 2022 Eddy Merckx 525 Rim, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 375 | 74 | 71.5 | 127 | 526 | 470 | 781 | 68 | 410 | 980 |
| S | 550 | 382 | 73.5 | 73 | 150 | 544 | 495 | 810 | 66 | 410 | 982 |
| M | 575 | 390 | 73 | 73.5 | 174 | 566 | 520 | 835 | 66 | 410 | 992 |
| L | 601 | 398 | 72.5 | 73.5 | 204 | 587 | 545 | 863 | 63 | 413 | 1012 |
| XL | 625 | 406 | 72.5 | 74 | 228 | 603 | 570 | 889 | 63 | 413 | 1022 |
All measurements in millimetres unless marked (°) for angles.
