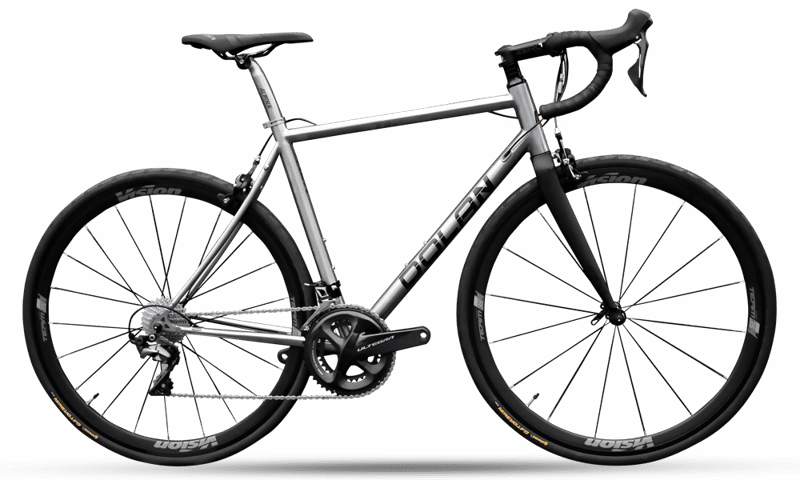

2022 Dolan ADX geometry
Full frame geometry for the 2022 Dolan ADX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) |
|---|---|---|---|---|---|---|
| X-SML | 544 | 380 | 74.5 | 72.5 | 135 | 531 |
| SML | 562 | 378 | 74 | 73 | 152 | 539 |
| MED | 579 | 384 | 74 | 73 | 170 | 549 |
| LRG | 590 | 392 | 73.5 | 73.5 | 180 | 567 |
| X-LRG | 616 | 398 | 73.5 | 74 | 205 | 580 |
All measurements in millimetres unless marked (°) for angles.
