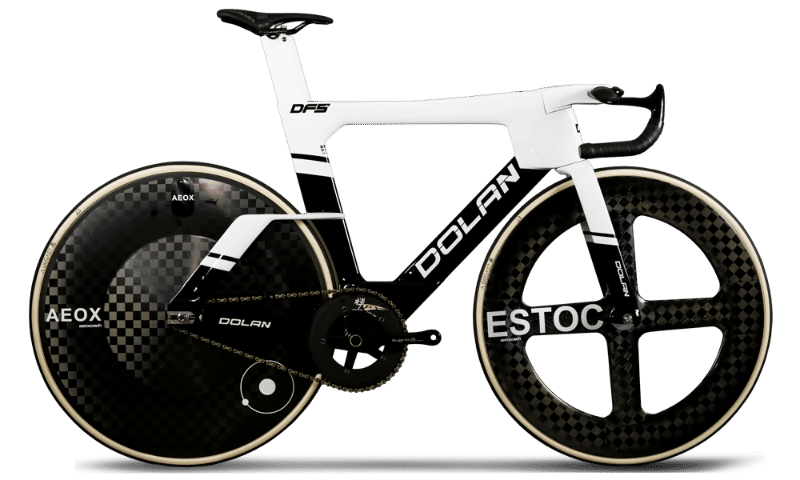

2025 Dolan DF5 geometry
Full frame geometry for the 2025 Dolan DF5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| 51.5 | 475.3 | 387.6 | 75 | 72 | 90 | 515 | 492.1 |
| 53 | 484.9 | 400.1 | 75 | 72.5 | 100 | 530 | 521.1 |
| 55 | 494.5 | 417.5 | 75 | 73.5 | 110 | 550 | 531 |
| 57 | 504.1 | 435 | 75 | 74 | 120 | 570 | 541 |
| 59 | 524.7 | 449.4 | 75 | 74.5 | 140 | 590 | 562.3 |
| 63 | 524.7 | 477.1 | 74 | 75 | 150 | 630 | 576.5 |
| 61 | 545.5 | 453.6 | 74 | 75 | 160 | 610 | 586.5 |
All measurements in millimetres unless marked (°) for angles.
