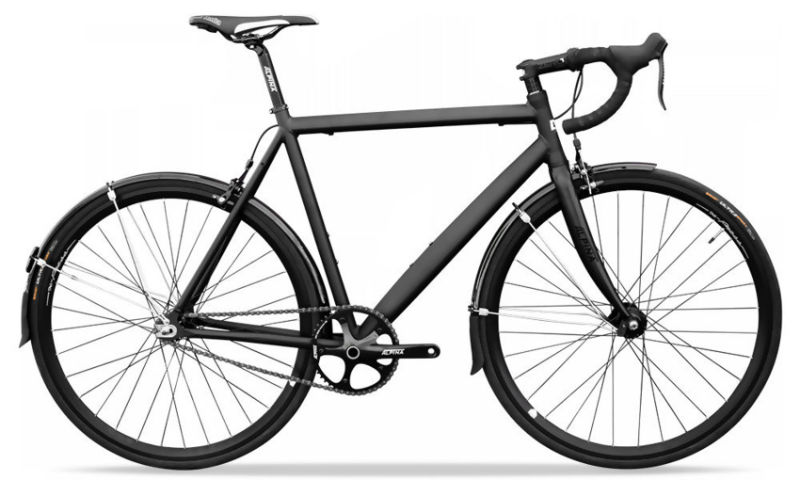

2025 Dolan FXE geometry
Full frame geometry for the 2025 Dolan FXE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| 50 | 503 | 396 | 75 | 73 | 105 | 525.7 | 500 |
| 52 | 516.9 | 400.8 | 75 | 73 | 120 | 535 | 520 |
| 54 | 539.5 | 408 | 75 | 73 | 140 | 545 | 540 |
| 56 | 561.3 | 411.6 | 75 | 73 | 160 | 565 | 560 |
| 58 | 580.6 | 412.8 | 75 | 73 | 180 | 570 | 580 |
| 60 | 599.9 | 444.9 | 74 | 74 | 200 | 605 | 600 |
All measurements in millimetres unless marked (°) for angles.
