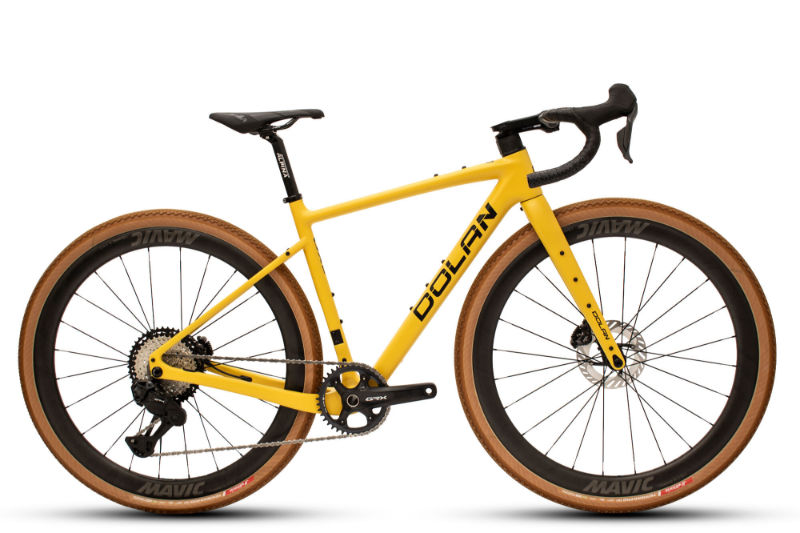

2025 Dolan GXC 2.0 geometry
Full frame geometry for the 2025 Dolan GXC 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| S | 536 | 366 | 74 | 71 | 125 | 535 | 500 |
| XS | 536 | 366 | 74.5 | 70.5 | 105 | 515 | 470 |
| M | 572 | 384 | 73.5 | 71.5 | 140 | 553 | 520 |
| L | 588 | 393 | 73.5 | 72 | 155 | 567 | 540 |
| XL | 603 | 402 | 73.5 | 72 | 170 | 580 | 560 |
All measurements in millimetres unless marked (°) for angles.
