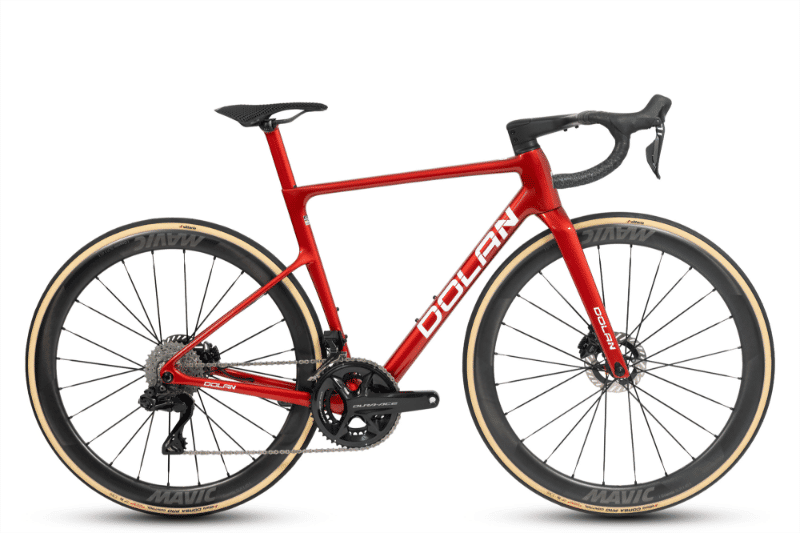

2026 Dolan Aether geometry
Full frame geometry for the 2026 Dolan Aether, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 375 | 75.5 | 71.8 | 110 | 509 | 445 | 574 | 410 | 973 |
| S | 534 | 380 | 74 | 72.5 | 120 | 532 | 455 | 577 | 410 | 976 |
| M | 548 | 384 | 74 | 73 | 135 | 541 | 475 | 581 | 410 | 980 |
| L | 568 | 395 | 73.5 | 73.5 | 155 | 563 | 495 | 593 | 410 | 993 |
| XL | 592 | 402 | 73.5 | 73.5 | 180 | 577 | 515 | 607 | 410 | 1006 |
All measurements in millimetres unless marked (°) for angles.
