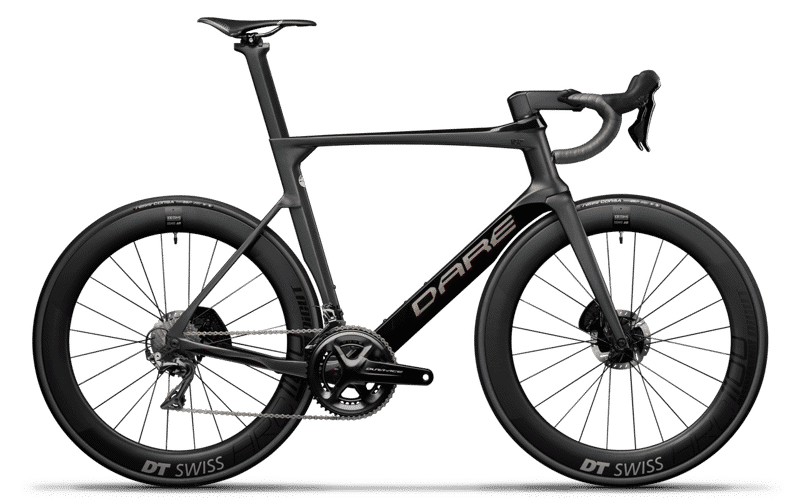

2019 Dare VSRu geometry
Full frame geometry for the 2019 Dare VSRu, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 (XXS) | 500 | 365 | 74 | 71 | 97 | 508 | 480 | 736 | 75 | 410 | 967 |
| 50 (XS) | 520 | 377 | 74 | 71.5 | 116 | 526 | 500 | 756 | 75 | 410 | 982 |
| 52 (S) | 540 | 389 | 74 | 72 | 137 | 543 | 520 | 778 | 73 | 410 | 997 |
| 54 (M) | 560 | 401 | 74 | 72 | 158 | 562 | 540 | 798 | 73 | 410 | 1015 |
| 56 (L) | 580 | 413 | 74 | 72.5 | 181 | 579 | 560 | 821 | 70 | 410 | 1030 |
| 58 (XL) | 600 | 425 | 74 | 72.5 | 201 | 597 | 580 | 841 | 70 | 410 | 1048 |
All measurements in millimetres unless marked (°) for angles.
