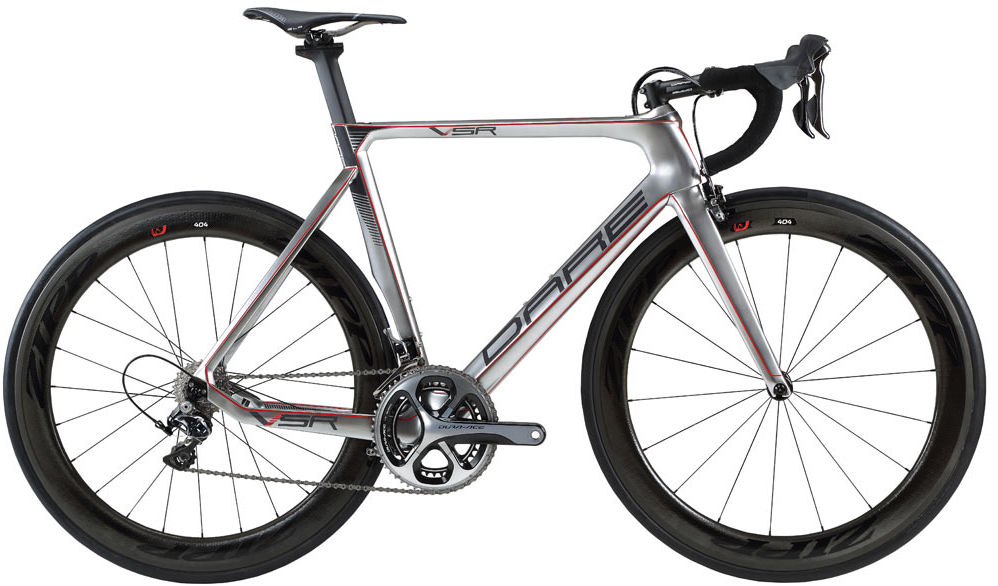

2016 Dare VSR MK I geometry
Full frame geometry for the 2016 Dare VSR MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 369 | 74.5 | 71 | 105 | 510 | 450 | 728 | 75 | 571 | 405 | 964 |
| S | 523 | 373 | 74.5 | 72 | 116 | 518 | 480 | 749 | 75 | 571 | 405 | 964 |
| M | 533 | 376 | 74.5 | 72 | 128 | 524 | 510 | 770 | 73 | 577 | 405 | 971 |
| ML | 546 | 383 | 74 | 72 | 145 | 539 | 540 | 794 | 70 | 589 | 405 | 984 |
| L | 564 | 392 | 74 | 73 | 160 | 554 | 560 | 812 | 70 | 594 | 405 | 989 |
| XL | 583 | 403 | 74 | 73.5 | 178 | 570 | 590 | 837 | 70 | 606 | 405 | 1001 |
All measurements in millimetres unless marked (°) for angles.
