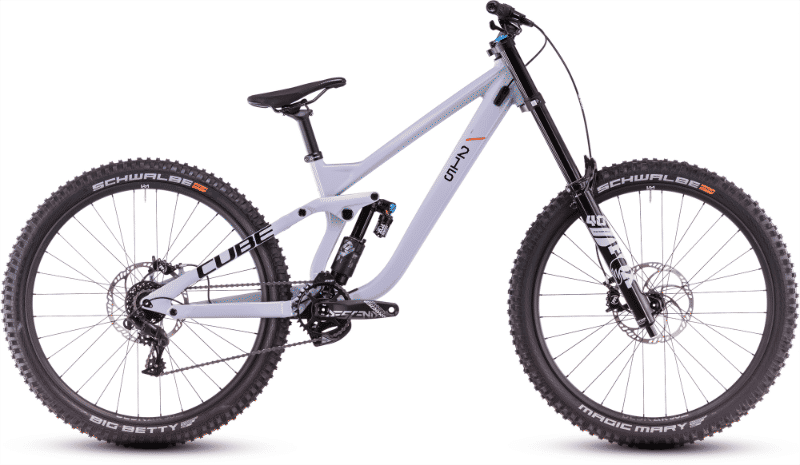

2026 Cube TWO15 geometry
Full frame geometry for the 2026 Cube TWO15, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 618 | 456 | 78.5 | 62.5 | 124 | 565 | 400 | 9 | 430 | 1262 |
| M | 618 | 436 | 78.5 | 62.5 | 124 | 545 | 380 | 9 | 430 | 1242 |
| XL | 618 | 476 | 78.5 | 62.5 | 124 | 585 | 400 | 9 | 430 | 1282 |
All measurements in millimetres unless marked (°) for angles.
