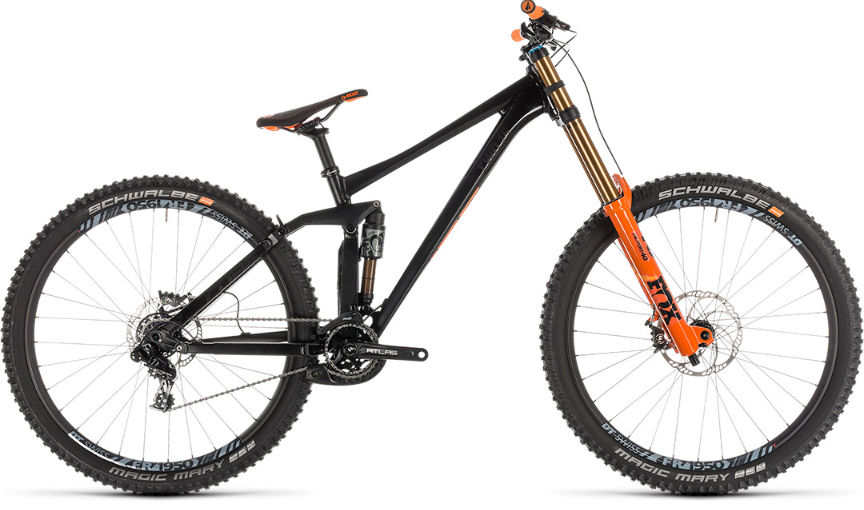

2018 Cube TWO15 geometry
Full frame geometry for the 2018 Cube TWO15, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 620 | 415 | 72.5 | 63 | 124 | 592 | 420 | 8 | 436 | 1221 |
| S | 620 | 395 | 72.5 | 63 | 124 | 572 | 420 | 8 | 436 | 1201 |
| L | 656 | 435 | 71 | 63.8 | 142 | 564 | 420 | 28 | 445 | 1253 |
| XL | 656 | 455 | 71 | 63.8 | 142 | 584 | 420 | 28 | 445 | 1273 |
All measurements in millimetres unless marked (°) for angles.
