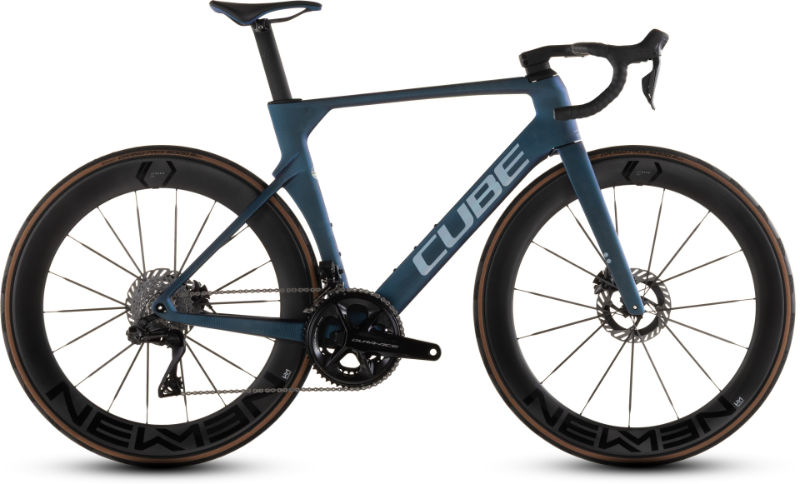

2027 Cube Litening Aero C:68X geometry
Full frame geometry for the 2027 Cube Litening Aero C:68X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 514 | 389 | 75 | 72.3 | 95 | 527 | 460 | 72 | 410 | 981 |
| 52 | 524 | 389 | 74.2 | 72.5 | 105 | 537 | 480 | 72 | 410 | 981 |
| 54 | 542 | 389 | 73.5 | 73 | 125 | 550 | 500 | 69 | 410 | 984 |
| 56 | 563 | 398 | 73.5 | 73.5 | 145 | 565 | 520 | 69 | 410 | 995 |
| 58 | 580 | 403 | 73 | 73.5 | 165 | 580 | 540 | 67 | 410 | 1005 |
| 60 | 594 | 405 | 72.5 | 73.5 | 180 | 592 | 560 | 67 | 410 | 1011 |
All measurements in millimetres unless marked (°) for angles.
