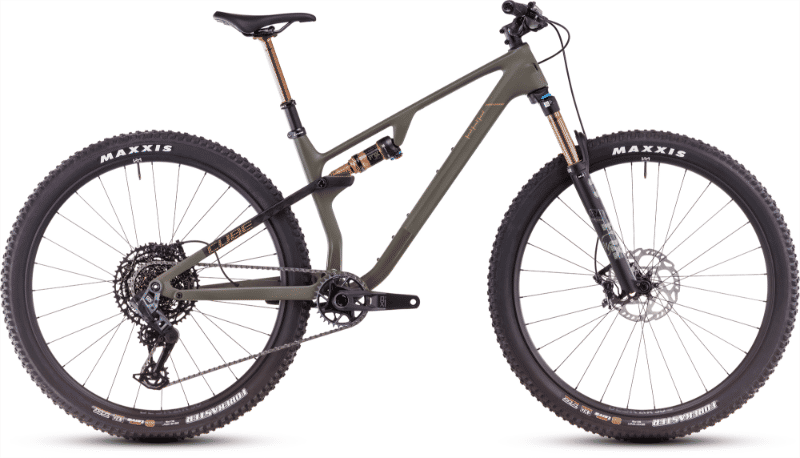

2026 Cube AMS One11 C:68X geometry
Full frame geometry for the 2026 Cube AMS One11 C:68X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 401 | 73.3 | 66 | 100 | 573 | 370 | 33 | 445 | 1141 |
| M | 601 | 423 | 73.4 | 66.1 | 110 | 598 | 420 | 33 | 445 | 1167 |
| L | 611 | 445 | 73.4 | 66.1 | 120 | 623 | 470 | 33 | 445 | 1193 |
| XL | 625 | 466 | 73.4 | 66.1 | 135 | 648 | 520 | 34 | 445 | 1219 |
All measurements in millimetres unless marked (°) for angles.
