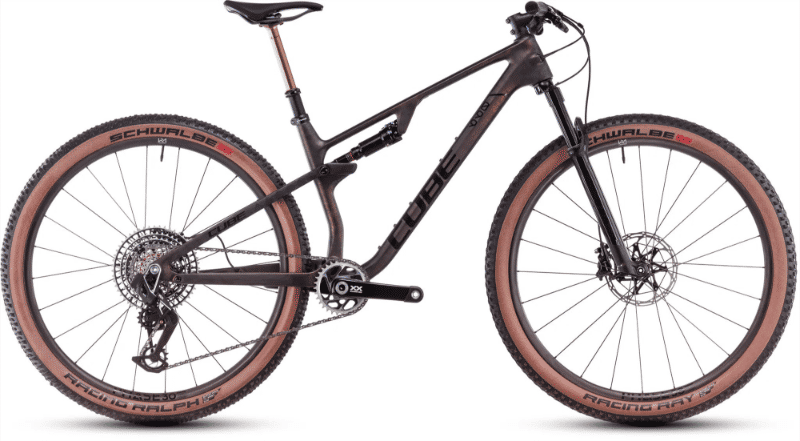

2026 Cube AMS Zero99 C:68X geometry
Full frame geometry for the 2026 Cube AMS Zero99 C:68X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 400 | 73.1 | 66.6 | 100 | 575 | 370 | 31 | 445 | 1134 |
| M | 603 | 422 | 73.2 | 66.7 | 110 | 600 | 420 | 32 | 445 | 1160 |
| L | 613 | 444 | 73.2 | 66.7 | 120 | 625 | 470 | 32 | 445 | 1186 |
| XL | 627 | 465 | 73.2 | 66.7 | 135 | 650 | 520 | 32 | 445 | 1212 |
All measurements in millimetres unless marked (°) for angles.
