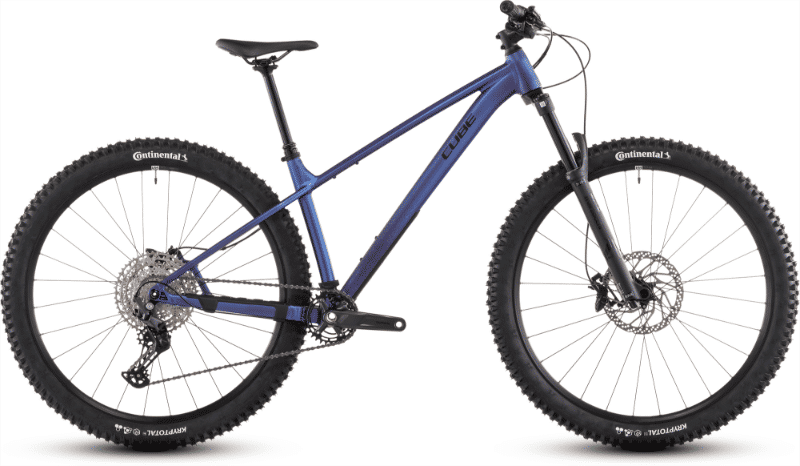

2026 Cube Reaction TM geometry
Full frame geometry for the 2026 Cube Reaction TM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 424 | 73.5 | 65 | 100 | 590 | 370 | 698 | 46 | 408 | 1131 |
| XS | 605 | 404 | 73.5 | 65 | 100 | 570 | 320 | 699 | 46 | 408 | 1111 |
| L | 635 | 462 | 73.5 | 65 | 100 | 630 | 420 | 741 | 60 | 427 | 1201 |
| M | 635 | 442 | 73.5 | 65 | 100 | 610 | 405 | 735 | 60 | 427 | 1181 |
| XL | 644 | 482 | 73.5 | 65 | 110 | 653 | 470 | 768 | 60 | 427 | 1226 |
All measurements in millimetres unless marked (°) for angles.
