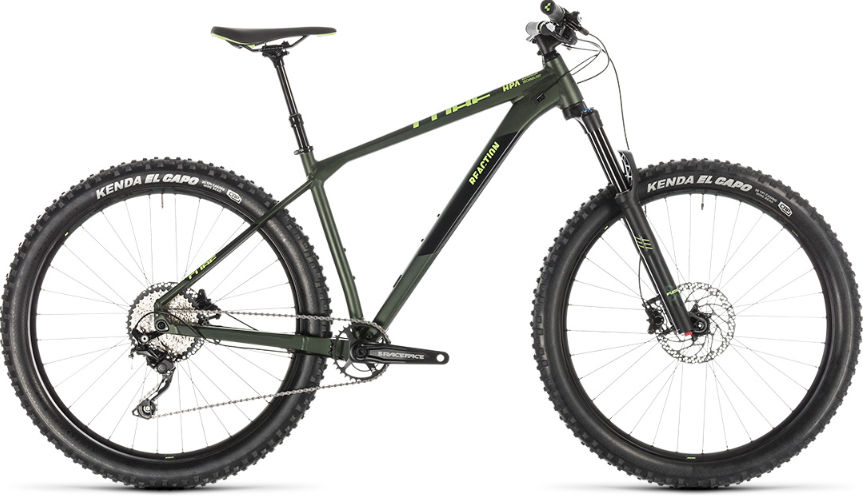

2018 Cube Reaction TM geometry
Full frame geometry for the 2018 Cube Reaction TM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 619 | 395 | 73.5 | 67 | 100 | 576 | 405 | 61 | 427 | 1110 |
| 18 | 623 | 415 | 73.5 | 67 | 105 | 597 | 450 | 61 | 427 | 1132 |
| 20 | 634 | 435 | 73.5 | 67 | 117 | 621 | 490 | 61 | 427 | 1157 |
| 22 | 649 | 455 | 73.5 | 67 | 133 | 646 | 540 | 61 | 427 | 1183 |
All measurements in millimetres unless marked (°) for angles.
