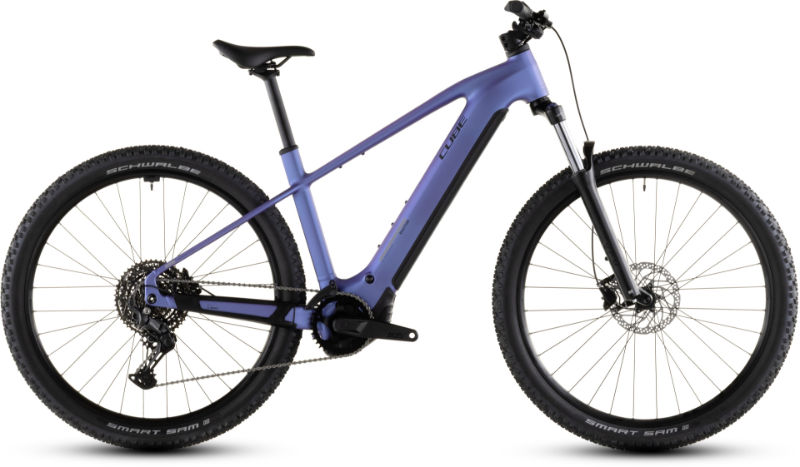

2026 Cube Reaction Hybrid geometry
Full frame geometry for the 2026 Cube Reaction Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 646 | 409 | 74.5 | 67.5 | 159 | 587 | 370 | 46 | 456 | 1157 |
| M | 653 | 420 | 74 | 67.5 | 110 | 607 | 405 | 65 | 470 | 1176 |
| L | 662 | 437 | 74 | 67.5 | 120 | 627 | 450 | 65 | 470 | 1198 |
| XL | 674 | 455 | 74 | 67.5 | 130 | 647 | 495 | 65 | 470 | 1218 |
| XXL | 685 | 471 | 74 | 67.5 | 145 | 667 | 545 | 65 | 470 | 1240 |
All measurements in millimetres unless marked (°) for angles.
