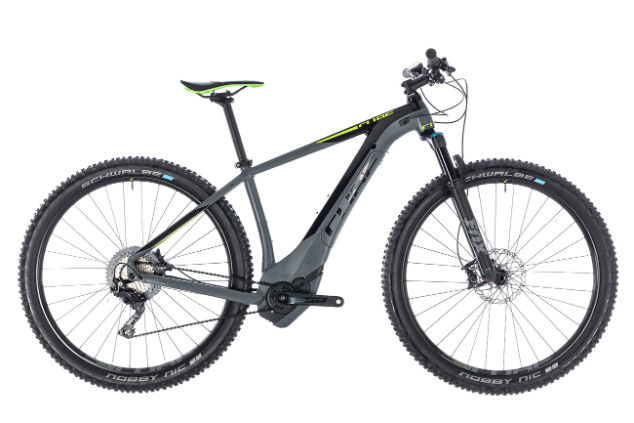

2018 Cube Reaction Hybrid geometry
Full frame geometry for the 2018 Cube Reaction Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 592 | 381 | 73.5 | 69 | 105 | 556 | 405 | 48 | 463 | 1089 |
| 18 | 614 | 396 | 73.5 | 70 | 120 | 578 | 450 | 52 | 463 | 1100 |
| 17 | 623 | 390 | 73 | 69.5 | 105 | 580 | 405 | 62 | 475 | 1112 |
| 19 | 633 | 407 | 73 | 70 | 110 | 600 | 450 | 65 | 475 | 1126 |
| 21 | 642 | 424 | 73 | 70 | 120 | 620 | 495 | 65 | 475 | 1146 |
| 23 | 656 | 429 | 73 | 70 | 135 | 630 | 545 | 65 | 475 | 1157 |
All measurements in millimetres unless marked (°) for angles.
