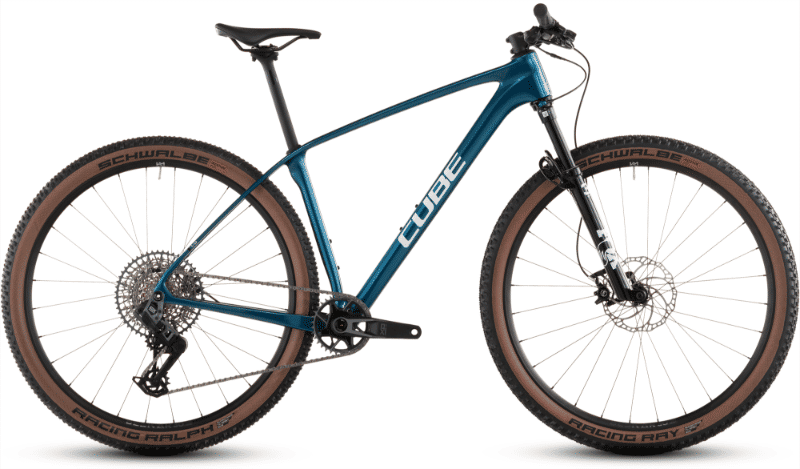

2026 Cube Reaction C:62 geometry
Full frame geometry for the 2026 Cube Reaction C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 405 | 74 | 68.5 | 97 | 578 | 370 | 767 | 65 | 426 | 1088 |
| M | 621 | 422 | 74 | 68.5 | 107 | 598 | 420 | 801 | 65 | 426 | 1109 |
| L | 630 | 439 | 74 | 68.5 | 117 | 618 | 450 | 821 | 65 | 426 | 1130 |
| XL | 639 | 456 | 74 | 68.5 | 127 | 638 | 510 | 859 | 65 | 426 | 1151 |
| XXL | 653 | 472 | 74 | 68.5 | 142 | 658 | 560 | 866 | 65 | 426 | 1173 |
All measurements in millimetres unless marked (°) for angles.
