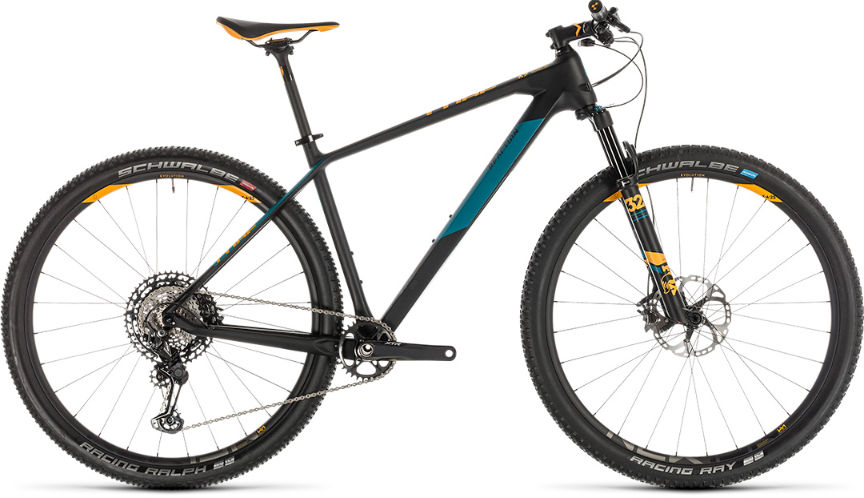

2018 Cube Reaction C:62 geometry
Full frame geometry for the 2018 Cube Reaction C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 609 | 389 | 73.5 | 69 | 100 | 567 | 370 | 65 | 423 | 1070 |
| 17 | 618 | 406 | 73.5 | 69 | 110 | 588 | 420 | 65 | 423 | 1091 |
| 19 | 627 | 425 | 73.5 | 69 | 120 | 609 | 470 | 65 | 423 | 1113 |
| 21 | 637 | 441 | 73.5 | 69 | 130 | 628 | 515 | 65 | 423 | 1133 |
| 23 | 651 | 456 | 73.5 | 69 | 145 | 648 | 565 | 65 | 423 | 1154 |
All measurements in millimetres unless marked (°) for angles.
