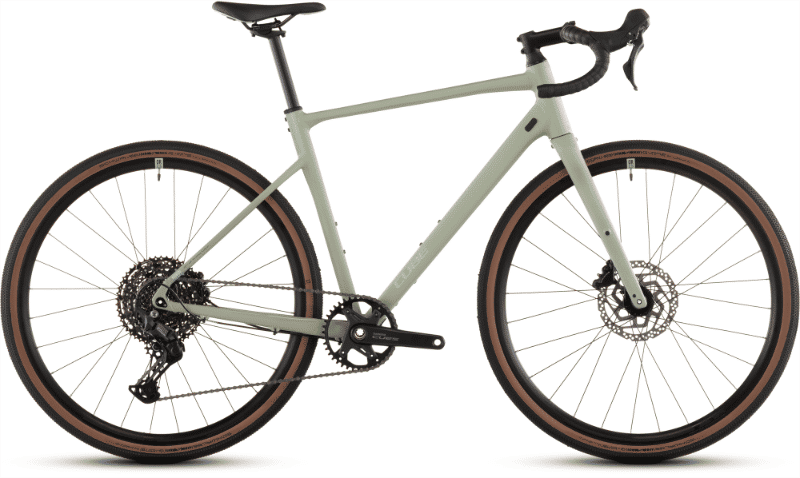

2026 Cube Nuroad HPA geometry
Full frame geometry for the 2026 Cube Nuroad HPA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 527 | 385 | 75.7 | 69 | 110 | 519 | 470 | 70 | 440 | 1043 |
| S | 555 | 385 | 74.7 | 70 | 135 | 537 | 500 | 70 | 440 | 1045 |
| M | 589 | 390 | 73.9 | 71.5 | 165 | 560 | 530 | 70 | 440 | 1046 |
| L | 610 | 389 | 73 | 72 | 185 | 575 | 550 | 70 | 442 | 1048 |
| XL | 631 | 397 | 73 | 72.5 | 205 | 590 | 570 | 70 | 442 | 1058 |
| XXL | 652 | 406 | 73 | 73 | 225 | 605 | 590 | 70 | 442 | 1068 |
All measurements in millimetres unless marked (°) for angles.
