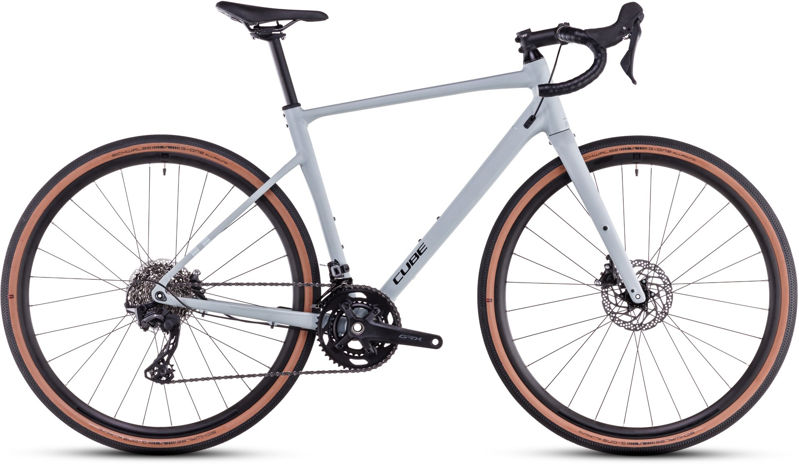

2025 Cube Nuroad HPA geometry
Full frame geometry for the 2025 Cube Nuroad HPA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| XXS | 488 | 369 | 75 | 68 | 500 | 691 | 421 | 1007 |
| XS | 530 | 384 | 75.8 | 69 | 518 | 749 | 440 | 1044 |
| S | 554 | 386 | 74.7 | 70 | 537 | 776 | 440 | 1045 |
| M | 588 | 389 | 73.8 | 71.4 | 560 | 808 | 440 | 1044 |
| L | 610 | 389 | 73 | 72 | 575 | 828 | 440 | 1046 |
| XL | 633 | 398 | 73 | 72.5 | 592 | 855 | 440 | 1058 |
All measurements in millimetres unless marked (°) for angles.
