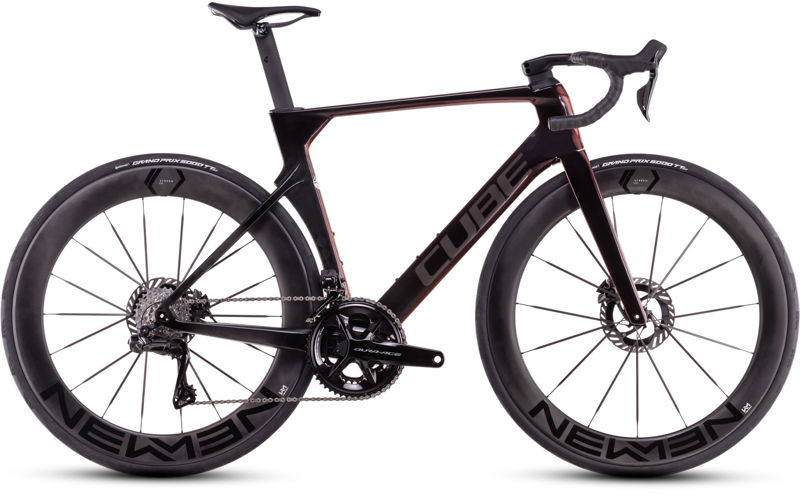

2025 Cube Litening Aero C:68X geometry
Full frame geometry for the 2025 Cube Litening Aero C:68X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 514 | 389 | 75 | 72.2 | 107 | 527 | 440 | 72 | 410 | 981 |
| 52 cm | 524 | 389 | 74.2 | 72.5 | 117 | 537 | 460 | 72 | 410 | 981 |
| 54 cm | 542 | 390 | 73.5 | 73 | 137 | 550 | 480 | 69 | 410 | 984 |
| 56 cm | 563 | 398 | 73.5 | 73.5 | 157 | 565 | 500 | 69 | 410 | 995 |
| 58 cm | 580 | 403 | 73 | 73.5 | 177 | 580 | 520 | 67 | 410 | 1005 |
| 60 cm | 594 | 405 | 72.5 | 73.5 | 192 | 592 | 540 | 67 | 410 | 1011 |
All measurements in millimetres unless marked (°) for angles.
