2026 Cube · MH

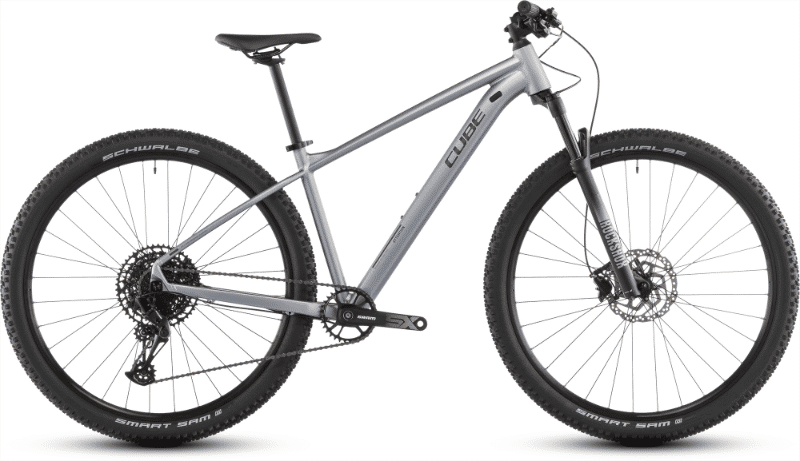

2026 Cube Attention geometry
Full frame geometry for the 2026 Cube Attention, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 595 | 384 | 74 | 68.5 | 108 | 555 | 340 | 52 | 427 | 1068 |
| S | 598 | 398 | 73.5 | 68.5 | 111 | 575 | 370 | 52 | 427 | 1082 |
| M | 627 | 409 | 73.5 | 68.5 | 111 | 595 | 420 | 65 | 450 | 1125 |
| L | 637 | 426 | 73.5 | 68.5 | 122 | 615 | 470 | 65 | 450 | 1146 |
| XL | 656 | 441 | 73.5 | 68.5 | 142 | 635 | 515 | 65 | 450 | 1168 |
| XXL | 670 | 457 | 73.5 | 68.5 | 157 | 655 | 560 | 65 | 450 | 1190 |
All measurements in millimetres unless marked (°) for angles.
