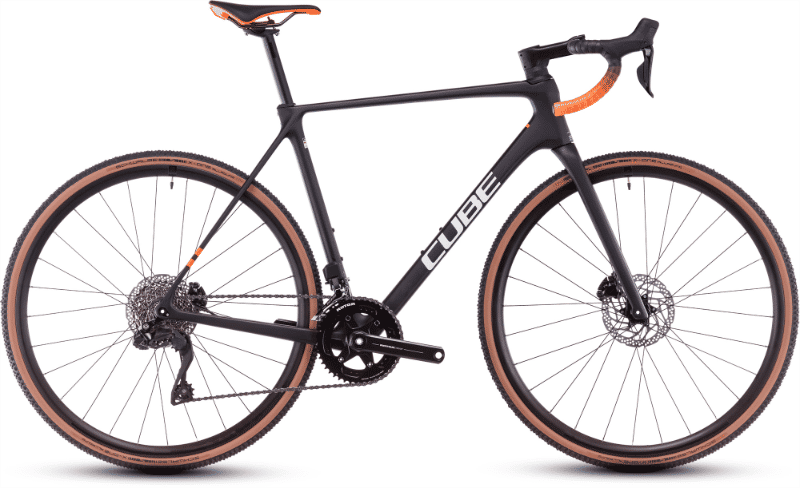

2026 Cube Cross Race C:62 geometry
Full frame geometry for the 2026 Cube Cross Race C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 520 | 381 | 74.5 | 71.5 | 93 | 525 | 468 | 765 | 63 | 423 | 1001 |
| 53 | 544 | 383 | 73.8 | 71.7 | 117 | 541 | 498 | 791 | 63 | 423 | 1009 |
| 56 | 570 | 390 | 73.4 | 72 | 144 | 560 | 528 | 819 | 63 | 425 | 1024 |
| 58 | 589 | 396 | 73.2 | 72 | 164 | 574 | 548 | 838 | 63 | 425 | 1036 |
| 61 | 613 | 406 | 73 | 72.5 | 187 | 593 | 578 | 864 | 63 | 425 | 1048 |
All measurements in millimetres unless marked (°) for angles.
