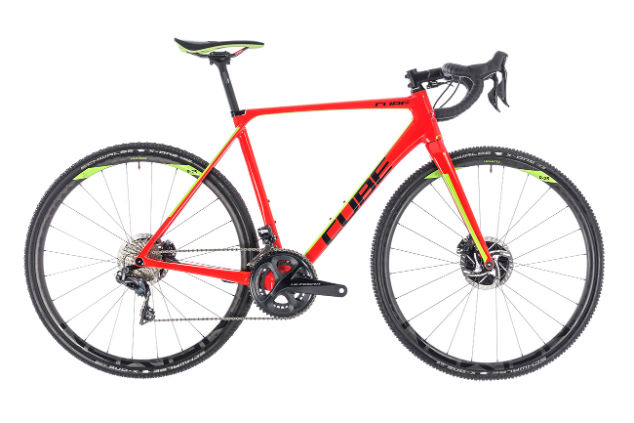

2018 Cube Cross Race C:62 geometry
Full frame geometry for the 2018 Cube Cross Race C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 520 | 387 | 75 | 71 | 107 | 525 | 466 | 64 | 422 | 1009 |
| 53 | 544 | 390 | 74.5 | 71.5 | 130 | 539 | 496 | 64 | 422 | 1019 |
| 56 | 566 | 393 | 73.5 | 72 | 152 | 558 | 522 | 64 | 422 | 1020 |
| 58 | 585 | 398 | 73 | 72 | 172 | 575 | 545 | 64 | 422 | 1033 |
| 61 | 609 | 406 | 73 | 72.5 | 195 | 590 | 575 | 64 | 422 | 1043 |
All measurements in millimetres unless marked (°) for angles.
