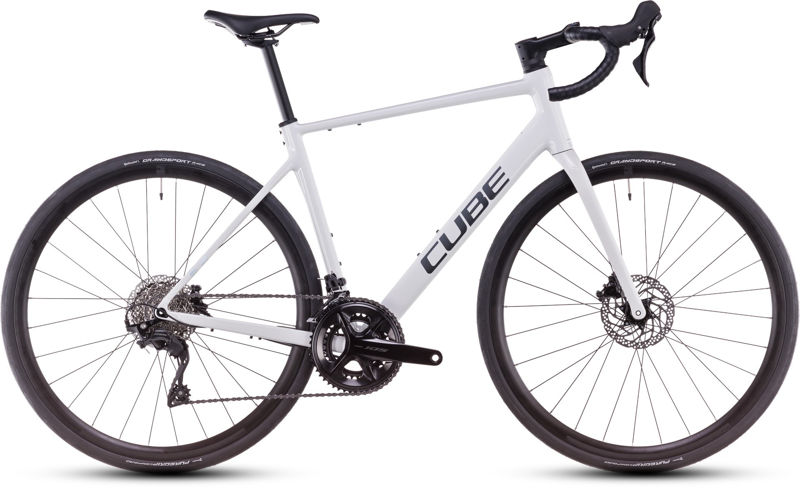

2025 Cube Attain HPA geometry
Full frame geometry for the 2025 Cube Attain HPA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 47 cm | 525 | 375 | 74.6 | 70.6 | 510 | 709 | 420 | 1000 |
| 50 cm | 538 | 378 | 74.6 | 71.5 | 517 | 732 | 420 | 1000 |
| 53 cm | 561 | 384 | 74 | 72 | 537 | 759 | 420 | 1008 |
| 56 cm | 591 | 391 | 73.5 | 72.5 | 560 | 790 | 420 | 1020 |
| 58 cm | 610 | 394 | 73 | 72.5 | 575 | 808 | 420 | 1020 |
| 60 cm | 630 | 396 | 72.5 | 72.5 | 590 | 828 | 420 | 1028 |
| 62 cm | 648 | 393 | 72.5 | 72.5 | 595 | 848 | 420 | 1036 |
All measurements in millimetres unless marked (°) for angles.
