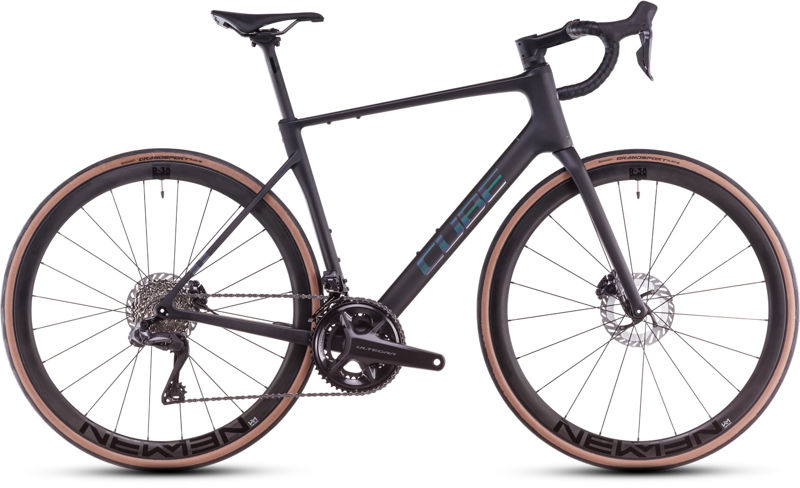

2025 Cube Attain C:62 geometry
Full frame geometry for the 2025 Cube Attain C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 cm | 525 | 365 | 74.6 | 70.6 | 120 | 510 | 410 | 718 | 420 | 991 |
| 50 cm | 538 | 369 | 74.6 | 71.1 | 130 | 517 | 440 | 741 | 420 | 994 |
| 53 cm | 561 | 376 | 74 | 72 | 152 | 537 | 470 | 767 | 420 | 1000 |
| 56 cm | 591 | 385 | 73.5 | 72.5 | 182 | 560 | 500 | 796 | 420 | 1014 |
| 58 cm | 610 | 388 | 73 | 72.5 | 202 | 575 | 520 | 816 | 420 | 1023 |
| 60 cm | 629 | 392 | 72.5 | 72.5 | 222 | 590 | 540 | 835 | 420 | 1033 |
| 62 cm | 648 | 391 | 72.5 | 72.5 | 242 | 595 | 560 | 855 | 420 | 1038 |
All measurements in millimetres unless marked (°) for angles.
