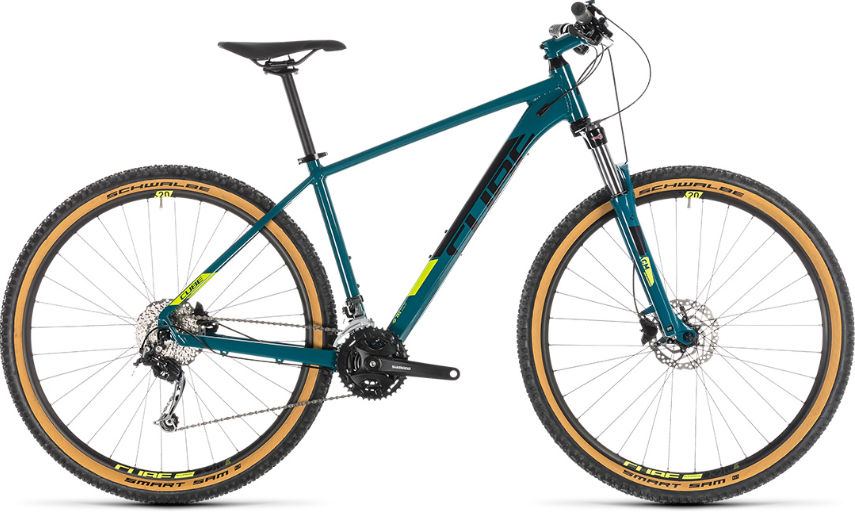

2018 Cube AIM geometry
Full frame geometry for the 2018 Cube AIM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 595 | 374 | 74 | 69 | 106 | 545 | 355 | 52 | 427 | 1052 |
| 16 | 598 | 384 | 73.5 | 69 | 109 | 561 | 405 | 52 | 427 | 1063 |
| 18 | 617 | 402 | 73.5 | 69 | 129 | 585 | 450 | 52 | 427 | 1088 |
| 17 | 623 | 391 | 73.5 | 69 | 109 | 575 | 420 | 65 | 450 | 1105 |
| 19 | 633 | 407 | 73.5 | 69 | 120 | 595 | 470 | 65 | 450 | 1126 |
| 21 | 642 | 425 | 73.5 | 69 | 130 | 615 | 515 | 65 | 450 | 1146 |
| 23 | 657 | 441 | 73.5 | 69 | 145 | 635 | 565 | 65 | 450 | 1168 |
All measurements in millimetres unless marked (°) for angles.
