2022 Cube · RD

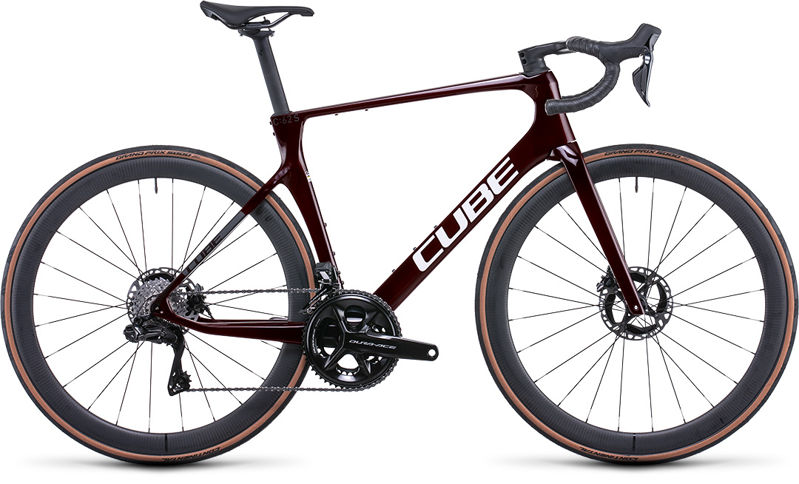

2022 Cube Agree C:62 geometry
Full frame geometry for the 2022 Cube Agree C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 522.8 | 378 | 74.6 | 71.5 | 107 | 522 | 440 | 734 | 73 | 412 | 986.7 |
| 53 cm | 543.5 | 382.6 | 74 | 72 | 127 | 538.5 | 470 | 760 | 73 | 412 | 993.6 |
| 56 cm | 571.7 | 390.6 | 73.5 | 72.5 | 157 | 560 | 500 | 791 | 71 | 412 | 1006.8 |
| 58 cm | 591 | 394.3 | 73 | 72.5 | 177 | 575 | 520 | 810 | 71 | 412 | 1016.5 |
| 60 cm | 606.2 | 398.9 | 72.5 | 72.5 | 195 | 590 | 540 | 829 | 69 | 412 | 1026.9 |
| 62 cm | 628.1 | 402 | 72.5 | 72.5 | 218 | 600 | 560 | 849 | 69 | 412 | 1036.9 |
All measurements in millimetres unless marked (°) for angles.
