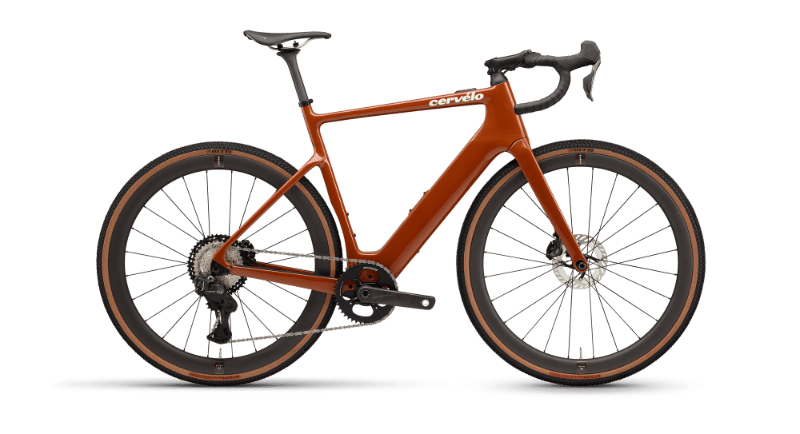

2026 Cervelo Rouvida geometry
Full frame geometry for the 2026 Cervelo Rouvida, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 524 | 370 | 74 | 71.5 | 106 | 521.5 | 724.5 | 74 | 581.2 | 415 | 984.8 | 53 |
| M | 556 | 378 | 73.5 | 72 | 137 | 543.5 | 768.8 | 74 | 591.8 | 415 | 995.5 | 50 |
| L | 583 | 386 | 73 | 72 | 165 | 564.7 | 794.6 | 74 | 608.5 | 415 | 1012.3 | 50 |
| XL | 609 | 394 | 72.5 | 72 | 193 | 586.3 | 819.5 | 74 | 624.8 | 415 | 1012.3 | 50 |
All measurements in millimetres unless marked (°) for angles.
