2026 Cervelo · G

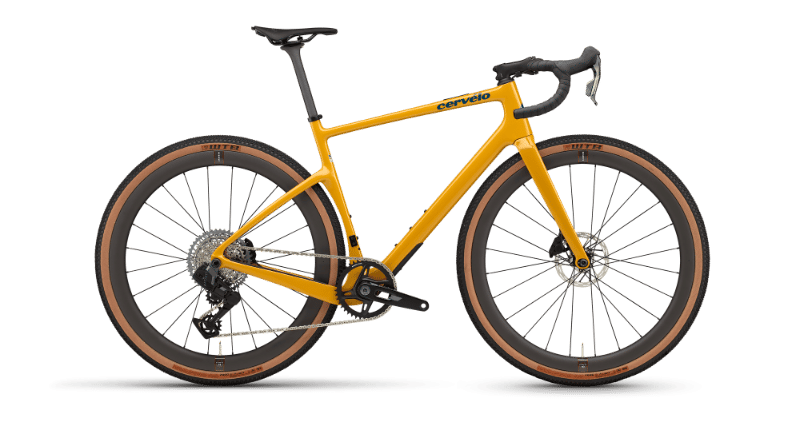

2026 Cervelo Aspero geometry
Full frame geometry for the 2026 Cervelo Aspero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 370 | 74.5 | 71 | 83 | 512 | 681 | 78.5 | 577 | 425 | 990 | 52 | 62 |
| 51 | 530 | 379 | 74 | 71.5 | 107 | 532 | 704 | 78.5 | 587 | 425 | 999 | 49 | 62 |
| 54 | 555 | 388 | 73.5 | 72 | 133 | 553 | 733 | 76 | 597 | 425 | 1010 | 46 | 62 |
| 56 | 580 | 397 | 73 | 72 | 159 | 575 | 757 | 76 | 614 | 425 | 1028 | 46 | 62 |
| 58 | 605 | 406 | 73 | 72 | 188 | 591 | 784 | 73.5 | 631 | 425 | 1046 | 46 | 62 |
| 61 | 630 | 415 | 73 | 72 | 214 | 608 | 808 | 73.5 | 648 | 425 | 1063 | 46 | 62 |
All measurements in millimetres unless marked (°) for angles.
