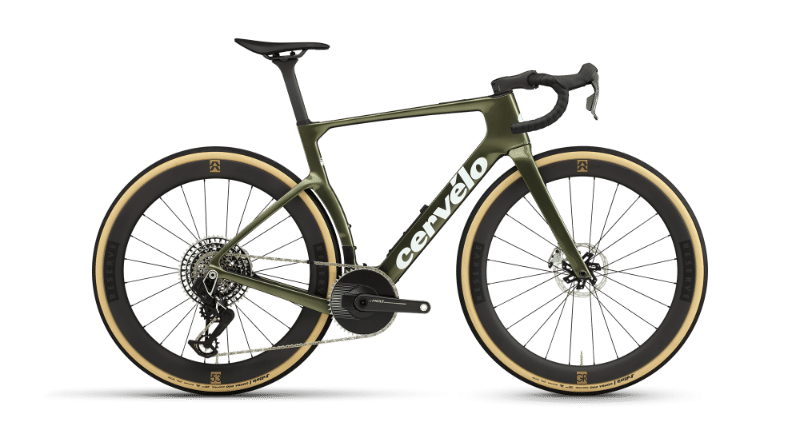

2027 Cervelo Aspero 5 (Mixed) geometry
Full frame geometry for the 2027 Cervelo Aspero 5 (Mixed), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 497 | 373 | 74.5 | 71 | 75 | 516 | 720 | 80 | 584 | 422.5 | 993 | 57.5 |
| 51 | 522 | 381 | 74 | 71.5 | 99 | 531 | 753 | 80 | 593 | 422.5 | 1002 | 54.5 |
| 54 | 547 | 390 | 73.5 | 72 | 122 | 552 | 779 | 80 | 602 | 422.5 | 1012 | 51.5 |
| 56 | 572 | 399 | 73 | 72 | 148 | 574 | 801 | 80 | 619 | 422.5 | 1029 | 51.5 |
| 58 | 597 | 408 | 73 | 72 | 177 | 591 | 826 | 78 | 636 | 422.5 | 1047 | 51.5 |
| 61 | 622 | 417 | 73 | 72 | 203 | 607 | 851 | 78 | 653 | 422.5 | 1064 | 51.5 |
All measurements in millimetres unless marked (°) for angles.
