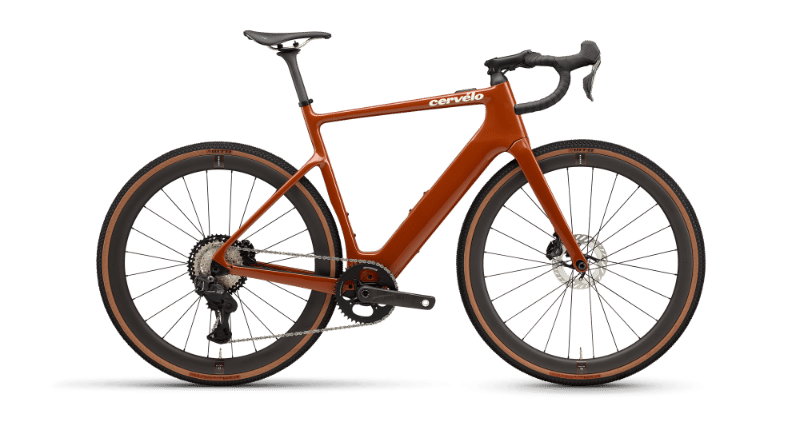

2025 Cervelo Rouvida geometry
Full frame geometry for the 2025 Cervelo Rouvida, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 529 | 363 | 73.3 | 70.8 | 106 | 521.5 | 80 | 586.2 | 425 | 999.8 | 56.5 |
| M | 561 | 371 | 72.8 | 71.3 | 137 | 543.5 | 80 | 596.8 | 425 | 1010.5 | 53.5 |
| L | 588 | 379 | 72.3 | 71.3 | 165 | 564.7 | 80 | 613.5 | 425 | 1027.3 | 53.5 |
| XL | 614 | 387 | 71.8 | 71.3 | 193 | 586.3 | 80 | 629.9 | 425 | 1043.7 | 53.5 |
All measurements in millimetres unless marked (°) for angles.
