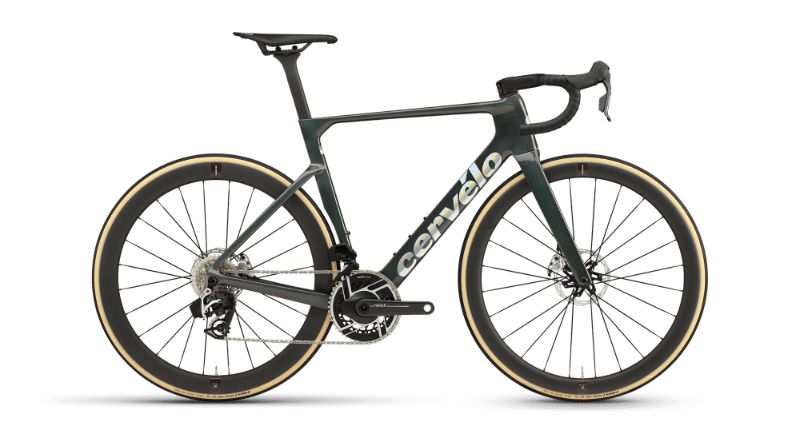

2027 Cervelo Soloist geometry
Full frame geometry for the 2027 Cervelo Soloist, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 496.1 | 368.7 | 74.5 | 71 | 89.6 | 506 | 707.6 | 77 | 579.1 | 410 | 976.8 | 58 | 57.3 |
| 51 | 520.2 | 376.5 | 74 | 72 | 109.3 | 526 | 747.1 | 77 | 579.9 | 410 | 977.6 | 52 | 57.3 |
| 54 | 544.6 | 383.3 | 73.5 | 73 | 132 | 545 | 773.8 | 74 | 579.5 | 410 | 978 | 46 | 57.3 |
| 56 | 567.5 | 391.1 | 73 | 73 | 156 | 565 | 811.6 | 74 | 594.2 | 410 | 992.8 | 46 | 57.3 |
| 58 | 590.7 | 400.3 | 73 | 73 | 182.8 | 581 | 820.7 | 72 | 610.8 | 410 | 1010.3 | 46 | 57.3 |
| 61 | 610.7 | 408.3 | 73 | 73 | 203.7 | 595 | 839 | 72 | 624.8 | 410 | 1024.5 | 46 | 57.3 |
All measurements in millimetres unless marked (°) for angles.
