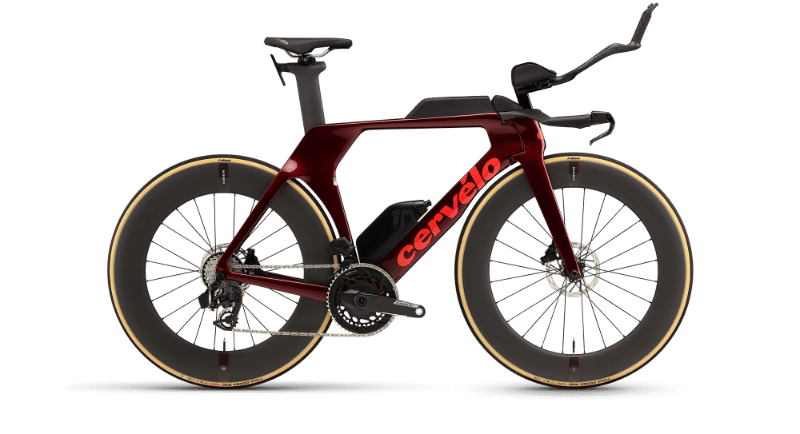

2025 Cervelo P5 geometry
Full frame geometry for the 2025 Cervelo P5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 461 | 389 | 71 | 58.5 | 513 | 739 | 75 | 582 | 405 | 975 | 52 |
| 51 | 482 | 406 | 72.5 | 70.7 | 535 | 759 | 75 | 583 | 405 | 976 | 43 |
| 54 | 498 | 420 | 72.5 | 88 | 553 | 775 | 75 | 602 | 405 | 995 | 43 |
| 56 | 516 | 433 | 72.5 | 106.9 | 571 | 792 | 75 | 622 | 405 | 1015 | 43 |
| 58 | 535 | 446 | 72.5 | 126.8 | 589 | 812 | 75 | 640 | 405 | 1033 | 43 |
| 61 | 556 | 455 | 72.4 | 147.8 | 604 | 906 | 74 | 654 | 405 | 1048 | 40.4 |
All measurements in millimetres unless marked (°) for angles.
