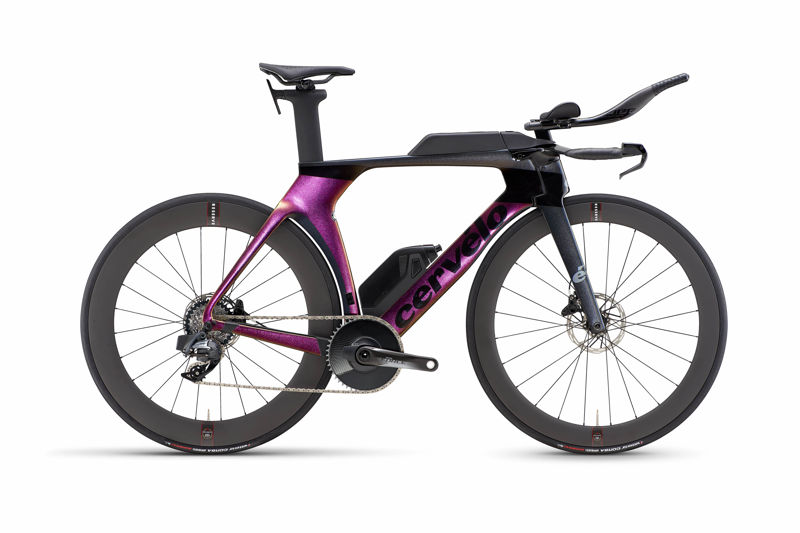

2021 Cervelo P5 geometry
Full frame geometry for the 2021 Cervelo P5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 48 | 466 | 387 | 71 | 67.5 | 728 | 75 | 582 | 975 | 52 |
| 51 | 486 | 403 | 72.5 | 81 | 754 | 75 | 583 | 976 | 43 |
| 54 | 502 | 417 | 72.5 | 98 | 769 | 75 | 602 | 995 | 43 |
| 56 | 521 | 431 | 72.5 | 117 | 786 | 75 | 622 | 1015 | 43 |
| 58 | 539 | 437 | 72.5 | 137 | 804 | 75 | 640 | 1033 | 43 |
All measurements in millimetres unless marked (°) for angles.
