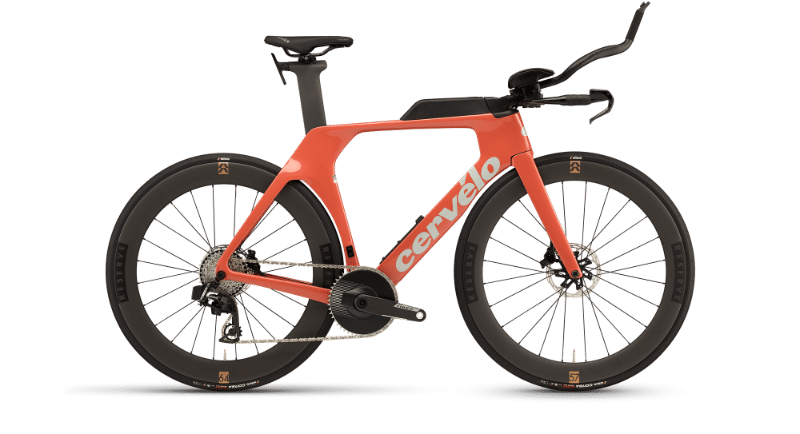

2026 Cervelo P-Series geometry
Full frame geometry for the 2026 Cervelo P-Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 494 | 378 | 79 | 71 | 87.8 | 474 | 734 | 80 | 581 | 405 | 973 | 52 | 62.1 |
| 51 | 515 | 395 | 79 | 72.5 | 101.7 | 495 | 755 | 80 | 583 | 405 | 974 | 43 | 62.1 |
| 54 | 531 | 409 | 79 | 72.5 | 118.4 | 512 | 770 | 80 | 602 | 405 | 993 | 43 | 62.1 |
| 56 | 549 | 422 | 79 | 72.5 | 137.3 | 529 | 787 | 80 | 620 | 405 | 1012 | 43 | 62.1 |
| 58 | 569 | 434 | 79 | 72.5 | 158.3 | 545 | 806 | 80 | 638 | 405 | 1030 | 43 | 62.1 |
| 61 | 587 | 443 | 79 | 72.5 | 177.2 | 557 | 823 | 80 | 653 | 405 | 1045 | 43 | 62.1 |
All measurements in millimetres unless marked (°) for angles.
