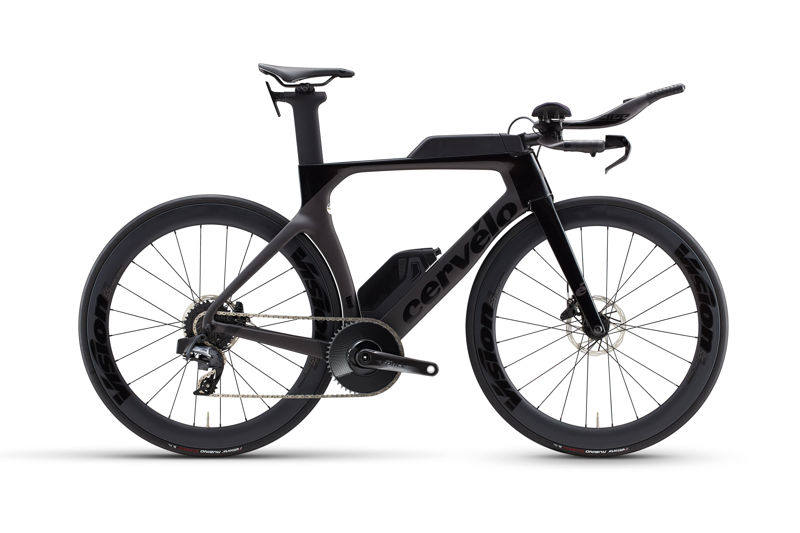

2021 Cervelo P-Series geometry
Full frame geometry for the 2021 Cervelo P-Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 485 | 381 | 71 | 87.5 | 511 | 732 | 75 | 582 | 405 | 975 | 52 | 62.4 |
| 51 | 506 | 398 | 72.5 | 101 | 533 | 758 | 75 | 583 | 405 | 976 | 43 | 62.4 |
| 54 | 522 | 412 | 72.5 | 118 | 551 | 773 | 75 | 602 | 405 | 995 | 43 | 62.4 |
| 56 | 540 | 425 | 72.5 | 137 | 570 | 790 | 75 | 622 | 405 | 1015 | 43 | 62.4 |
| 58 | 559 | 437 | 72.5 | 157 | 587 | 808 | 75 | 640 | 405 | 1033 | 43 | 62.4 |
| 61 | 587 | 443 | 72.5 | 187 | 600 | 836 | 75 | 654 | 405 | 1047 | 43 | 62.4 |
All measurements in millimetres unless marked (°) for angles.
