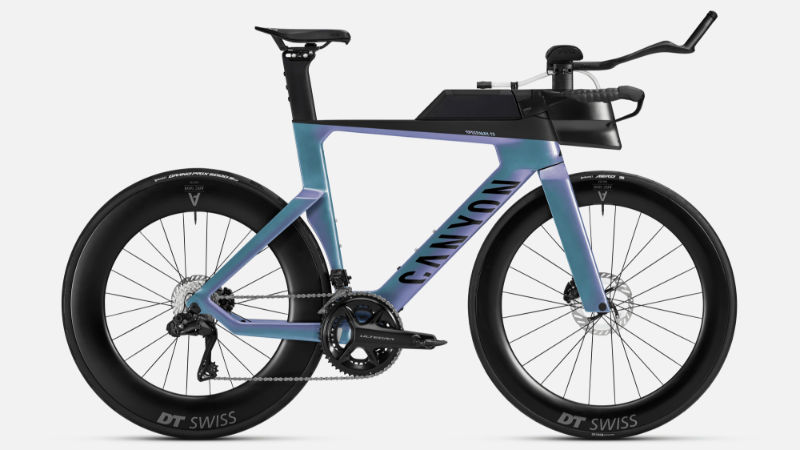

2026 Canyon Speedmax CF geometry
Full frame geometry for the 2026 Canyon Speedmax CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 482 | 374 | 80.5 | 72 | 113 | 454 | 480 | 754 | 52 | 410 | 956 |
| S | 519 | 402 | 80.5 | 73 | 115 | 489 | 518 | 791 | 72 | 420 | 988 |
| M | 544 | 420 | 80.5 | 73 | 140 | 511 | 543 | 815 | 72 | 420 | 1014 |
| L | 578 | 443 | 80.5 | 73 | 176 | 540 | 577 | 849 | 72 | 420 | 1046 |
| XL | 608 | 468 | 80.5 | 73 | 207 | 570 | 607 | 879 | 72 | 420 | 1081 |
All measurements in millimetres unless marked (°) for angles.
