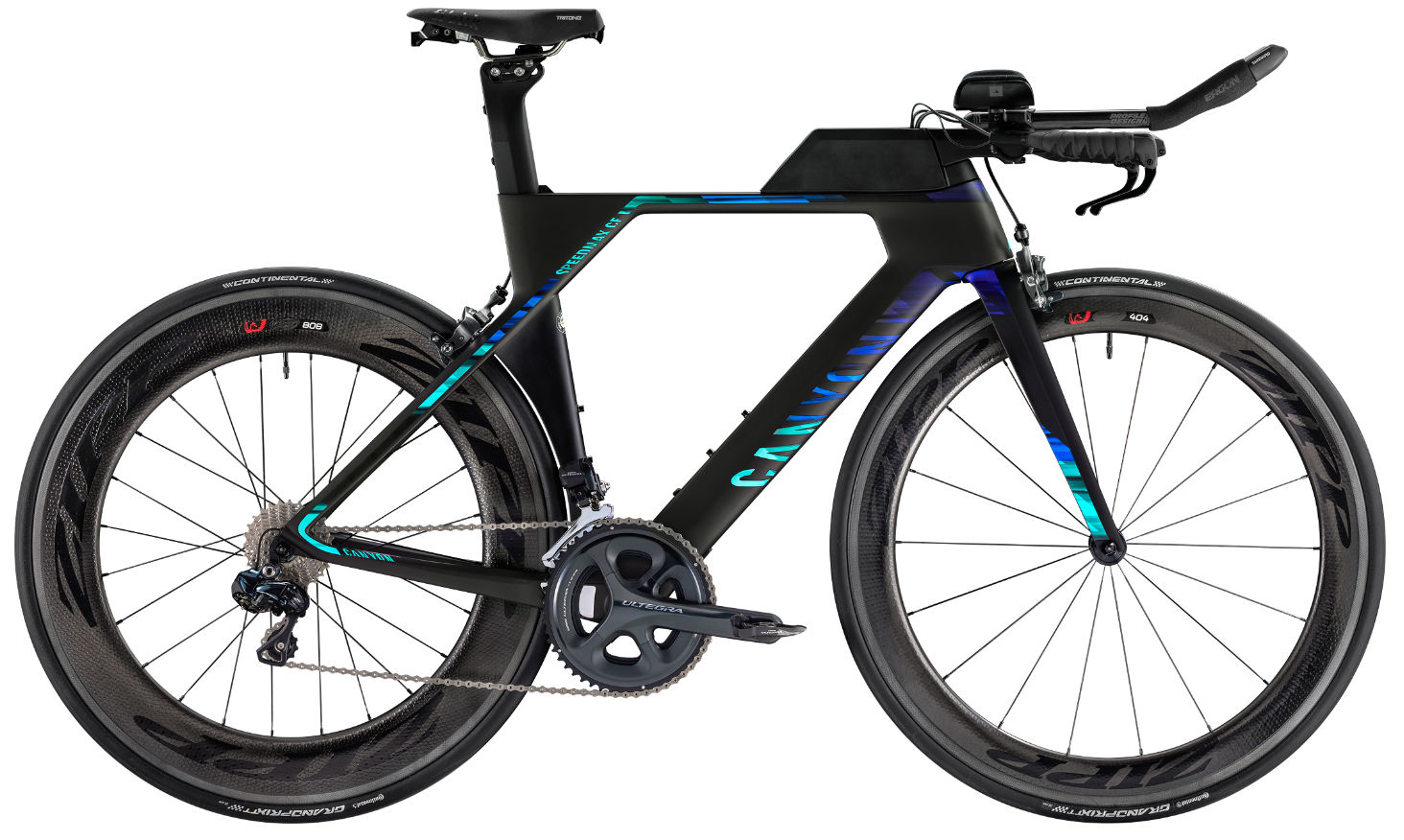

2016 Canyon Speedmax CF geometry
Full frame geometry for the 2016 Canyon Speedmax CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 481 | 397 | 80.5 | 72.5 | 75 | 477 | 490 | 748 | 70 | 571 | 420 | 981 | 39 | 64 |
| S | 510 | 405 | 80.5 | 73 | 104 | 490 | 520 | 777 | 70 | 584 | 420 | 994 | 39 | 61 |
| M | 533 | 425 | 80.5 | 73 | 128 | 514 | 543 | 800 | 70 | 610 | 420 | 1020 | 39 | 61 |
| L | 555 | 435 | 80.5 | 73 | 151 | 528 | 565 | 822 | 70 | 627 | 420 | 1037 | 39 | 61 |
| XL | 582 | 455 | 80.5 | 73 | 179 | 552 | 593 | 850 | 70 | 656 | 420 | 1066 | 39 | 61 |
All measurements in millimetres unless marked (°) for angles.
