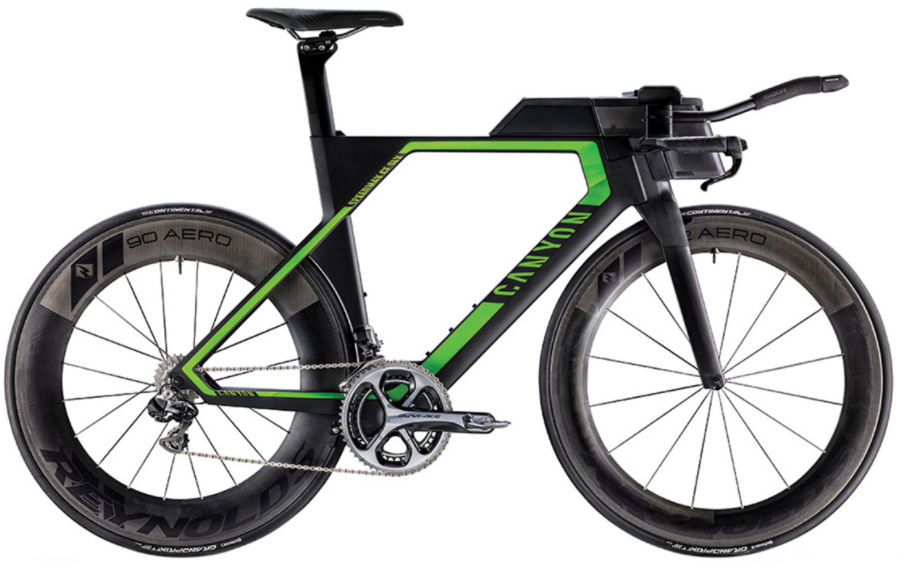

2017 Canyon Speedmax CF SLX geometry
Full frame geometry for the 2017 Canyon Speedmax CF SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 469 | 413 | 80.5 | 73 | 63 | 491 | 510 | 751 | 70 | 575 | 420 | 985 | 34 |
| M | 498 | 435 | 80.5 | 73 | 93 | 518 | 539 | 781 | 70 | 606 | 420 | 1016 | 34 |
| L | 514 | 458 | 80.5 | 73 | 109 | 543 | 573 | 806 | 70 | 641 | 420 | 1051 | 34 |
All measurements in millimetres unless marked (°) for angles.
