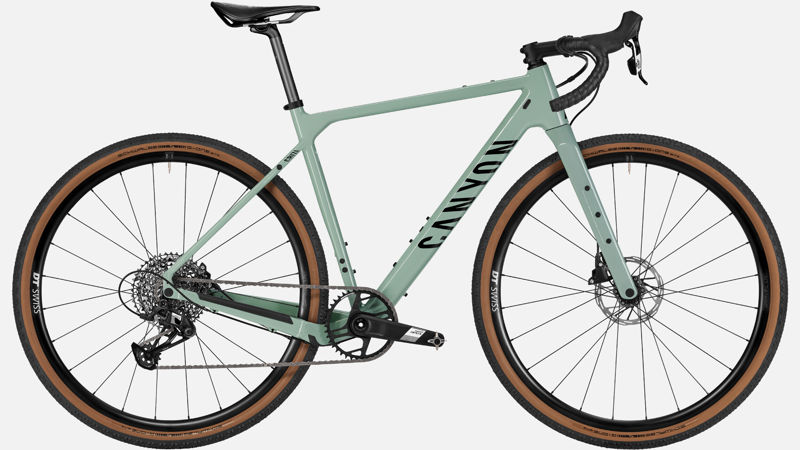

2024 Canyon Grizl AL geometry
Full frame geometry for the 2024 Canyon Grizl AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3XS | 512 | 372 | 73.5 | 69 | 115 | 524 | 402 | 60 | 420 |
| 2XS | 522 | 377 | 73.5 | 69.8 | 122 | 532 | 432 | 60 | 420 |
| XS | 537 | 382 | 73.5 | 70.5 | 135 | 541 | 462 | 60 | 420 |
| S | 556 | 397 | 73.5 | 70.3 | 121 | 562 | 492 | 75 | 435 |
| M | 579 | 402 | 73.5 | 71.5 | 141 | 574 | 522 | 75 | 435 |
| L | 605 | 409 | 73.5 | 72 | 166 | 588 | 552 | 75 | 435 |
| XL | 626 | 427 | 73.5 | 72.5 | 186 | 612 | 582 | 75 | 435 |
| 2XL | 644 | 436 | 73.5 | 72.5 | 205 | 627 | 612 | 75 | 435 |
All measurements in millimetres unless marked (°) for angles.
