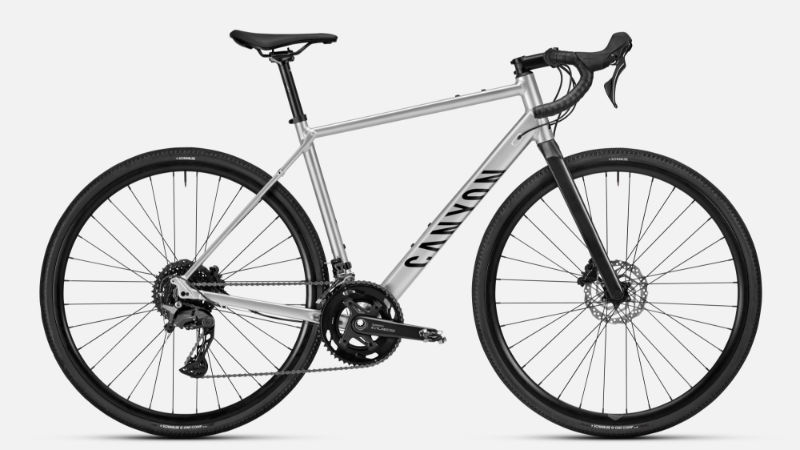

2026 Canyon Endurace AllRoad geometry
Full frame geometry for the 2026 Canyon Endurace AllRoad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 552 | 371 | 73.5 | 70 | 130 | 534 | 432 | 727 | 74 | 425 | 1019 |
| XS | 554 | 377 | 73.5 | 70 | 133 | 541 | 462 | 756 | 74 | 425 | 1026 |
| S | 570 | 391 | 73.5 | 71 | 145 | 560 | 492 | 785 | 74 | 425 | 1036 |
| M | 594 | 397 | 73.5 | 72 | 166 | 573 | 522 | 813 | 74 | 425 | 1040 |
| L | 616 | 407 | 73.5 | 72 | 189 | 589 | 552 | 842 | 74 | 425 | 1057 |
| XL | 640 | 425 | 73.5 | 72 | 215 | 615 | 582 | 870 | 74 | 425 | 1083 |
| 2XL | 660 | 438 | 73.5 | 72 | 235 | 633 | 612 | 899 | 74 | 425 | 1103 |
All measurements in millimetres unless marked (°) for angles.
