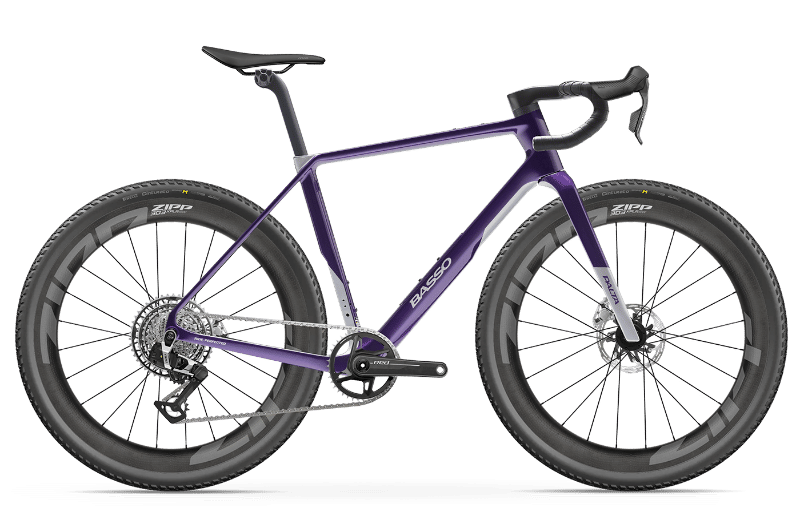

2025 Basso Palta III geometry
Full frame geometry for the 2025 Basso Palta III, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 354 | 75 | 68 | 112 | 496 | 410 | 737 | 71 | 592 | 430 | 1012 |
| S | 550 | 362 | 74.5 | 69 | 127 | 515 | 450 | 770 | 71 | 593 | 430 | 1013 |
| M | 570 | 373 | 73.7 | 70 | 146 | 540 | 490 | 802 | 71 | 607 | 430 | 1026 |
| L | 590 | 385 | 73.5 | 71 | 163 | 560 | 520 | 827 | 71 | 615 | 430 | 1035 |
| XL | 605 | 398 | 73.5 | 71 | 179 | 578 | 550 | 850 | 71 | 633 | 430 | 1054 |
| XXL | 620 | 405 | 73 | 71 | 193 | 595 | 580 | 827 | 71 | 640 | 430 | 1060 |
All measurements in millimetres unless marked (°) for angles.
