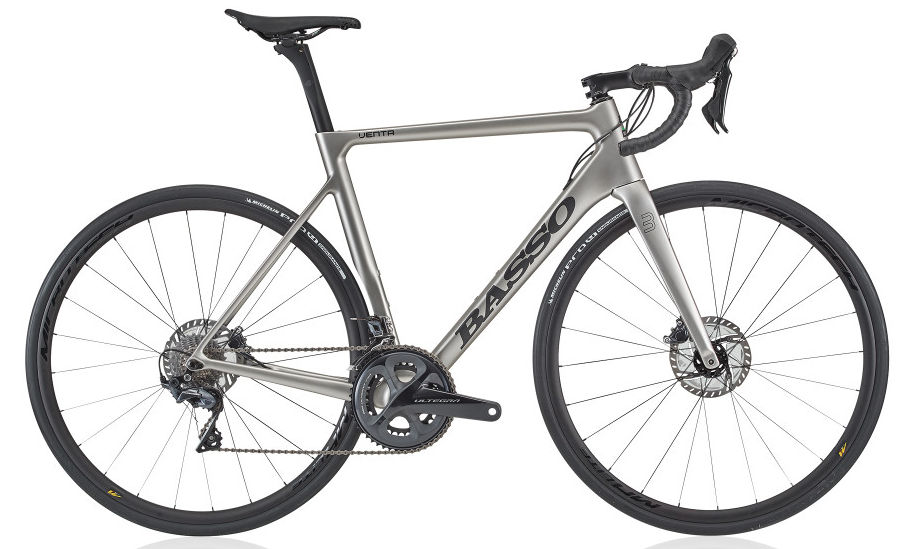

2019 Basso Venta MK II geometry
Full frame geometry for the 2019 Basso Venta MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 45 | 520 | 375 | 76 | 72 | 120 | 494 | 572 | 400 |
| 48 | 524 | 374 | 75 | 71.8 | 125 | 505 | 575 | 400 |
| 51 | 549 | 377 | 75 | 72 | 150 | 516 | 584 | 400 |
| 53 | 561 | 384 | 74 | 72.3 | 162 | 536 | 592 | 400 |
| 56 | 588 | 386 | 73.5 | 73.5 | 180 | 551 | 590 | 402 |
| 58 | 611 | 388 | 73 | 73.5 | 204 | 564 | 599 | 404 |
| 61 | 636 | 390 | 72.5 | 74 | 228 | 579 | 602 | 405 |
All measurements in millimetres unless marked (°) for angles.
